Rotax 503, Rotax 503 electric start, Rotax 503
electric starter parts.
|
|
Rotax 503 electric starter main body parts
|
|
# |
Part # |
Description |
Qty Req. |
3 |
834 050 |
Starter gear 61 T |
1 |
4 |
852 370 |
Starter Gear
Adapter
|
1 |
5 |
250 311 |
Washer 8,4 DIN
125
|
3
|
6 |
945 752 |
Lock Washer A8
|
3 |
7 |
940 490 |
Hex Screw M8x35
|
3 |
9-22 |
995 925 |
Electric Starter
kit
|
1 |
9 |
910 731 |
Starter Cover
|
1 |
10 |
850 390 |
O-Ring 60-4
|
1
|
11 |
995 430 |
Electric Starter
Assembly
|
1
|
12 |
841 950
|
Stud M8x43/23
|
2 |
13 |
966 030 |
Mass Cable 80 MM
Assembly
|
1 |
14 |
944 038 |
Washer 8,4/14/1
|
1
|
15 |
942 030 |
Lock Nut M8
|
2
|
16 |
850 585 |
0 Ring 8x5 |
2 |
17 |
230 260 |
0 Ring 6x3 |
10 |
18 |
850 580 |
0 Ring 8x4 |
2 |
19 |
850 590 |
0 Ring 16-4 |
2 |
20 |
827 910 |
Washer 8,2/26,3/2
|
2 |
21 |
942 030 |
Lock Nut M8
|
2 |
22 |
841 680 |
Taptite
Screw M5x8
|
1 |
25 |
945 751
|
Lock Washer A6
DIN 128
|
4
|
26 |
241 816 |
Allen Screw M6x40
DIN 912
|
4 |
|
|

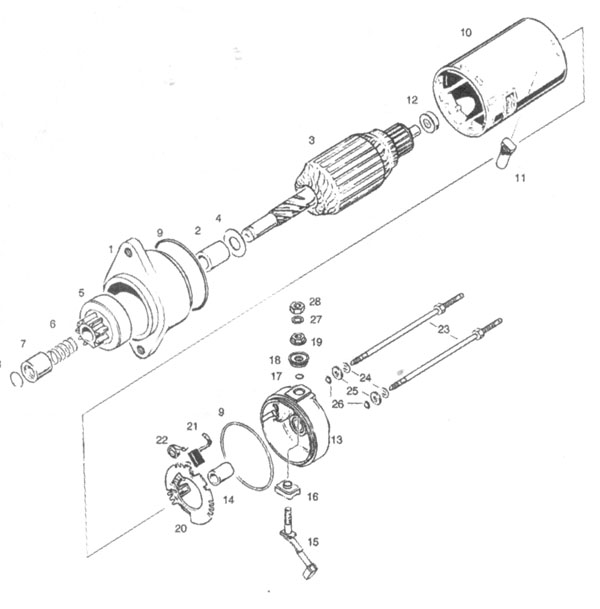

Rotax 503 electric start, internal electrical parts.
|
|
# |
Part # |
Description |
Qty
Req. |
1-26 |
995 430
|
Electric Starter
Assembly
|
1 |
1-2 |
866 880 |
Drive Housing
Assembly |
1 |
2 |
|
Bushing |
1 |
3 |
866 870 |
Rotor Assembly |
1 |
4 |
927 050 |
Thrust Washer
15,3/24/1
|
1 |
5 |
866 850
|
Overrunning-Clutch Drive Assembly
|
1 |
6 |
939 030 |
Spring |
1 |
7 |
927 040 |
Stop collar |
7 |
8 |
845 360 |
Circlip |
1 |
9 |
850 500 |
O-Ring 62-1.5
|
2 |
10 |
866 860 |
Yoke Assembly
|
1 |
11 |
860 600 |
Venting Rubber |
1 |
12 |
827 600
|
Shim
|
nb |
13 |
|
End Frame with
Sleeve
|
1b |
14 |
|
Bushing
|
1c |
15 |
866 892 |
Carbon Brush with
Screw |
1 |
16 |
260 820 |
Isolating Bushing
|
1 |
17 |
230 530 |
O-Ring 6x1.7
|
1 |
18
|
260 800 |
Connector Sheath
|
1 |
19
|
242 780 |
Combined Nut M6
|
1 |
20-22
|
866 890 |
Brush Holder with
Springs
|
1 |
21
|
|
Brush |
1d |
22
|
|
Spring |
1a |
23 |
841 860 |
Screw M5 |
2 |
24
|
945 750 |
Lock Washer A5
|
2 |
25
|
827 800 |
Washer A 5,5
DIN
6902 |
2 |
26
|
850 510 |
O-Ring 4,7x1.4
|
2 |
27
|
945 751 |
Lock Washer A6
DIN 128 |
1 |
28 |
242 211
|
Hex Nut M6 |
1 |
|
|
|
|
|
NOTE*
a Bushing, not available as spare part, use drive housing assembly
Part No.866-880.
b End frame with sleeve, not available as spare part, use end
frame assembly Part No.866-900.
c Bushing, not available as spare part, use drive housing assembly
Part No.866-900.
d Brush, not available as spare part, use brush holder assembly
Part No.866-890.
e Spring, not available as spare part, use brush holder assembly
Part No.866-890. |
|

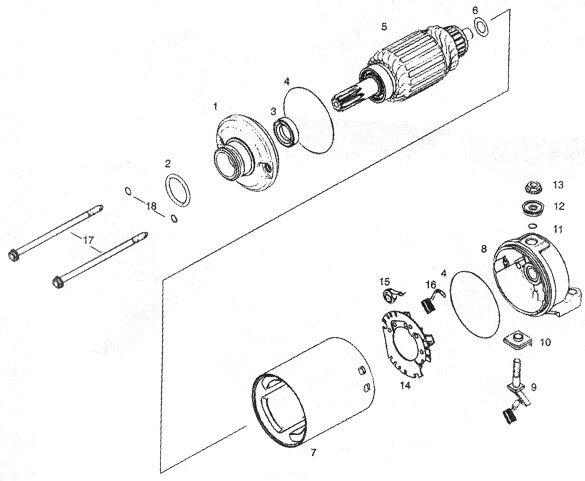

Rotax E drive starter parts
|
|
#
|
Part #
|
Description
|
Qty
Req.
|
1-18 |
293 153 |
Electric Starter
Assembly |
1
|
2 |
250 140 |
O-Ring DIN
3771-24,4x3,1-N NBR70 |
1
|
3 |
250 130 |
Oil Seal 15x24x5 NBR
|
1
|
4 |
850 500 |
O-Ring 62-1 ,5
|
2
|
5 |
264 142 |
Rotor Assembly
|
1 |
6 |
827 600 |
Shim NB
|
|
7 |
264 151 |
Stator Yoke Assembly
|
1 |
8 |
264 172 |
Rotor Support Assembly
|
1
|
9 |
264 184 |
Carbon Brush Assembly
|
1 |
10 |
260 810 |
Connector Sheath
|
1
|
11 |
230 530 |
O-Ring 6x1 , 7
|
1
|
12 |
260 800 |
Connector Sheath
|
1
|
13 |
242 780 |
Combined Nut M6
|
1
|
14-16 |
866 891 |
Brush Holder with
Spring |
1
|
17 |
241 137 |
Hex Collar Screw M5x100
|
2
|
18 |
850 510 |
O-Ring 4, 7x1 ,4
|
2
|
NOTE*
a Brush not available as spare part, use brush holder assembly Part No.866
891.
b Spring not
available as spare part, use brush holder assembly Part No.866 891 |
NOTE*
a Brush not available as spare part, use brush holder assembly Part No.866
891.
b Spring not
available as spare part, use brush holder assembly Part No.866 891 |
|
