Patriot Aircraft Straton D9 motor glider.

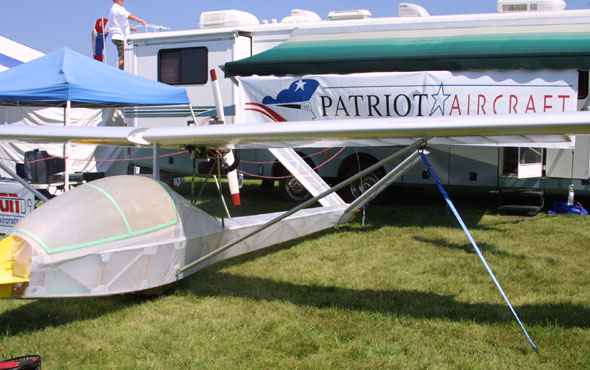

A number of years ago Aero Dovron Inc of Jupiter Florida introduced a motor glider called the Straton D-7. It was an all wood kit, this year Dobro Hajek formally of Aero Dovron now of Patriot Aircraft had on display a Straton D-9. The Straton D-9 covered, looks just like the D-7 - but underneath the covering plane is a totally redesigned aircraft.

Specifications

Wing span                    36.00 ft.

Length                           21.00 ft.

Wing area (each)          107.00 sq.ft.

Empty Weight                250 lbs.

Max Flight Weight          470 lbs.

Useful load                    220 lbs.

Propeller (wood)            51.2x13 deg.

Engine Hp w/reduction   28 hp @ 2800 rpm



Operating G-loads             +4, -2

Stall speed                        25 mph

Max-VNE                          80 mph

Glide Ratio                       18:1

Climb                                   550  .

Take off distance (grass)   250 ft.

Landing distance               280 ft.

Sink Rate                     3.0 ft./sec. @ 40mph

The D-9 uses all aluminum construction (rather than wood), except for the fiberglass cockpit. The kit comes with everything pre-welded, preformed, pre-cut, and machined ensuring high quality and ease of assembly.

According to the manufacturer the kit should take between 250 and 500 hours to build with no special tools or jigs needed. Covering material used is 1.7 ounce heat shrink dacron sail cloth. The wings use D cell construction with aluminum stamped ribs.

Both the wing and tail section can be removed quickly for transportation.

The D-9  is  powered by the Hirth F-33 - 28 hp which comes with reduction drive, pull start and electric start, fuel capacity is 3.5 U.S. gallons.

The control system is standard stick and rudder, with V-tail ruddervators and ailerons, no flaps or dive brakes. The craft is designed to accommodate an optional BRS parachute system.

For more information contact:
Patriot Aircraft
13602 N. 66th St
Omaha NE 68152

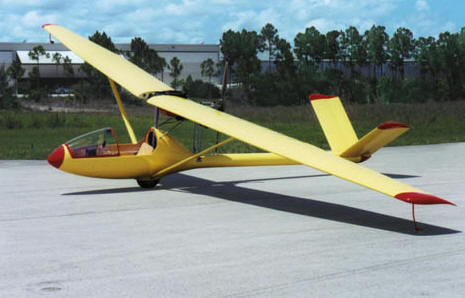

Straton D-9

Straton D-9 by Patriot Aircraft
