THE HOT BOX IS A
SELF-CONTAINED PRIMARY WIRING SYSTEM. IT HAS EVERYTHING NEEDED TO CONNECT
YOUR STARTER AND LIGHTING COIL EQUIPPED ENGINE ELECTRICALLY WITH THE REST OF
YOUR AIRCRAFT. SUPPLIED WITH 6 GAUGE WIRE.
FUSED, TOP QUALITY RECTIFIER/REGULATOR
TO CHARGE BATTERY
FOUR POSITION AUTO-BLADE TYPE FUSE BLOCK
SUPPLY THREE NOISE FILTERED 12V TAPS.
HEAVY DUTY SOLENOID FOR THE
ELECTRIC START CIRCUIT.
SPECIAL HOBBS HOUR METER CIRCUIT THAT WILL
ONLY WORK WHEN THE ENGINE IS RUNNING. NO MORE DEDUCTING TIME FOR LEAVING
THE MASTER ON!
COLOR MATCHING WIRING HARNESS, READY TO
PLUG INTO ENGINE
COLORED CABLES, READY TO CONNECT TO
STARTER AND BATTERY
NINE TERMINALS CONSIST OF:
2-MASTER
3-12V POWER
1-TACHOMETER
1-LEFT AND RIGHT MAGNETO
1-START
1-HOBBS
5 ADDITIONAL PAIRS OF TERMINALS FOR TEMP
SENSING AND LOW LEVEL WARNING CIRCUITS
DIMENSIONS, INCLUDING REGULATOR AND
TERMINAL STRIPS 6.5"L X 4.75"W X 4"H.
WEIGHT = 4LBS
INCLUDES FUSES, 3@3AMP, 1@5AMP.
MADE IN USA
EASE OF WIRING, PIECE OF MIND KHB,
$215.00 U.S.
PRECISION POWER SUPPLY AND BATTERY CHARGER Provides 12V of pure, noise free
DC power at 3 amps. Used to SAFELY power radios including CB, navigation
equipment, etc. It will not interfere with tachometers, strobes, or any
other AC items. Can be used with or without a battery. 4 1/2" x 3 1/2" and
weighs only 10 oz. # KPPS, U.S. $128.00. Made in the USA
POWER SEPARATOR
If you presently own a lighting
coil ONLY powered strobe and a large regulator/rectifier, you will find that
they do not work well together when connected to the same lighting coil.
This power separator will allow them to work together. #KPS U.S. $39.00. Made in
the USA
KEY WEST POWER
SUPPLY Don't have a battery? No problem! This voltage regulator and power
supply provides more than enough power to run strobe lights, gauges, radios
and more. It also requires no load and can be used as a charging system for
the battery. #KW1 U.S. $59.95.
Tympanium
regulator/rectifier.
Requires 1 Amp load to operate. Made in USA #866-080,
U.S. $35.27
Tympanium
regulator/rectifier.
No load required. Made in USA #264-870,
U.S. $64.41
BATTERIES
POWER
SONIC SEALED,
LEAD ACID BATTERIES ARE NO MAINTENANCE. MOUNTABLE IN ANY POSITION, THESE
RELIABLE BATTERIES ARE ALSO ECONOMICAL. ALL 12 VOLT. NUT/BOLT TYPE
CONNECTORS.
AMPS
LXWXH"
PART#
EACH
3
5.2X2.6X2.4
PS-1230
U.S. $29.95
12
6X3.9X3.7
PS-12120
U.S. $59.95
18
7.1X3X6.6
PS-12180
U.S. $69.95
26
7X6.5X5
PS-12260
U.S. $119.95
ULTRA BATTERIES
Small battery with BIG starting power! Lightweight. 12V, 7AMP, 6.5lbs
for up to Rotax 582,
4.5"Lx2.75"Wx5.125"H $49.95
13AMP hour, for any piston powered engine.
$119.95

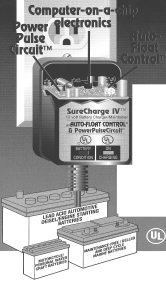

LED'S SHOW CORRECT CONNECTIONS, BATTERY
CONDITION AND CHARGE MODE.
BLINKS WHEN CHARGED
WILL MAINTAIN UP TO 4 BATTERIES OF
SIMILAR SIZE AND CONDITION AT THE SAME TIME!!
UL SAFETY LISTED
FIVE YEAR WARRANTY
NOT A TRICKLE CHARGER!!
DIRECT WALL PLUG IN
AUTO-FLOAT CONTROL
SURECHARGE BATTER MAINTAINER, #SC-1, U.S. $29.95

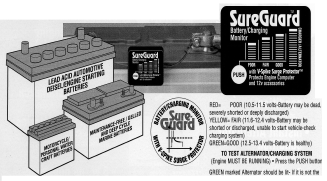

SUREGUARD BATTERY CHARGING MONITOR,
#SG-1, U.S. $24.95
INSTANTLY KNOW THE STATE OF YOUR BATTERY!
ATTACH THE SUREGUARD DEVICE TO YOUR BATTERY AND FOUR COLOR CODED LED'S
TELL YOU THE STATE OF THE BATTERY AND WHETHER THE ALTERNATOR AND REGULATOR
ARE DOING THEIR JOBS! ALSO PROTECTS ELECTRICAL SYSTEMS AGAINST THE VOLTAGE
SURGE OF JUMPSTARTS AND HELPS AVOID UNNECESSARY REPLACEMENT OF A GOOD
BATTERY. WORKS WITH ANY 12V SYSTEM.
SUREGUARD BATTERY CHARGING MONITOR,
#SG-1, U.S. $24.95
