Rotax E drive, Rotax e box, Rotax E reduction drive.

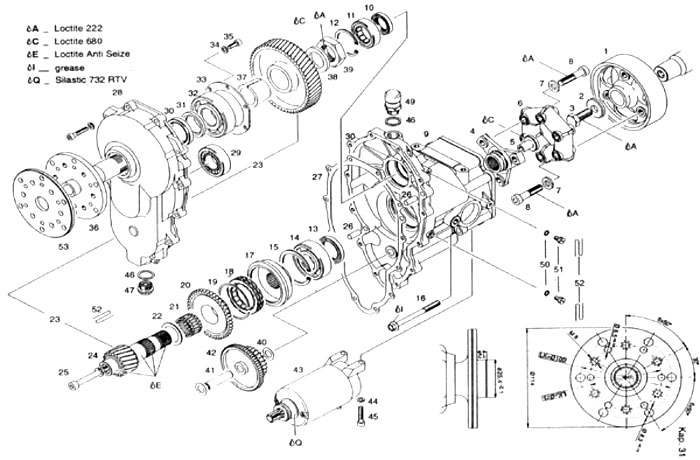

# Part # Description Qty Req.
Rotax E gear box
1 958 980   Flywheel 1
2 827 785   Washer 1
3 841 651   Hex Screw 1/2-20 UNF x30 1
4 958 971   Coupling Flange  1
5 842 660   Nut 8mm  1
6 958 961   Rubber Coupling 1
7 944 120   Washer 6
8 841 820   Allen Screw 10x45 6
9 810 350   Gearbox Housing  1
10 930 675   Oil Seal 25x38x7 1
11 232 285   Roller Bearing 1
12 945 690   Retaining Ring 1
13 950 085   Oil Seal 32x47x7 1
14 932 820   Ball Bearing  1
15 445 070   Retaining Ring 1
16 440 366   Screw 8x90 8
17 852 430   Sprag Clutch Housing  1
18 259 077   Sprag Clutch 1
19 245 620  Snap Ring 62 1
20 834 280   Free Wheel Gear 42t  1
21 832 410   Needle Cage 1
22 427 235   Thrust Washer req.
23 886 750   2.62 Gear Set (replace both gears) 1
23 886 752   3.00 Gear Set (replace both gears)  1
23 886 754   3.47 Gear Set (replace both gears)  1
23 886 756   4.00 Gear Set (replace both gears) 1
24 845 310   Lockwasher 1
25 440 210   Allen Screw 8x80  1
26 929 940   Pin 8x20 2
27 950 215   Gasket  1
28 810 360  Gear Cover 1
29 232 242  Bearing 1
30 930 715   Oil Seal 35x47x7 1
31 944 110   Distance Ring 1
32 932 570   Ball Bearing 6306 1
33 944 106  Shim 1
34 445 330   Lockwasher VHZ 6 6
35 241 236   Allen Screw 6x16 6
36 837 183   Prop shaft 1
37 847 755   Split Cone Sleeve  1
38 845 430   Friction Washer  1
39 842 575   Hex Nut M30x1.5 LH 1
40 227 450   Thrust Washer  2
41 837 300   Idle Gear Shaft  1
42 834 290   Idle Gear 62/25 1
43 293 153   Electric Starter Assy 1
44 945 751   Lockwasher 6mm 14
45 840 887 Allen Screw 6x30 14
46 552 280   Gasket Ring 1
47 840 270 Magnetic Plug 1
48 931 200 Gasket Ring 1
49 941 115 Air Vent Screw 1
50 830 890 Gasket Ring 2
51 841 781 Capstan Screw 6x10 2
52 Safety Wire req.
53 944 140 Cover Washer 1
54 Lithium Grease req.
55 Anti-Seize req.
56 Green Loctite
57 222 Violet Loctite . req.
58 Silastic 732 RTV req.
