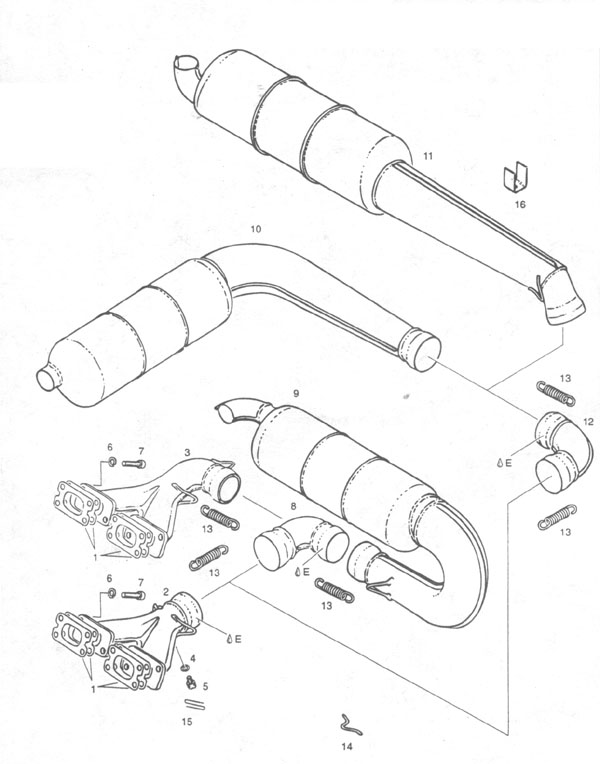

Rotax 582 exhaust system

#

Part #

Description

Qty Req.

1

850 633

Exhaust gasket, 582 Only 2 required
(4 are for air cooled engines only)

2

2

973 121

Exhaust manifold, 582 threaded

1

4

950 141

Gasket ring, A8x13 2

2

5

941 615

Capstan screw, M8x1x10

2

6

945 752

582 4 Lock washer A8

4

7

840 991

Allen screw M8x30, 22NM

4

8

973 182

Connecting elbow with hooks

1

973 180

Connecting elbow, no hooks

1

9

973 198

Muffler assy, sidemount, 10 3/8"  inlet for 582 3pc

1

10

973 274

Muffler assy, 90 degree

1

11

973 191

Muffler assy, straight for 582, 16 3/4" inlet cone

1

12

973 180

Connecting elbow, no hooks

1

973 182

Connecting elbow, with hooks

1

13

938 790

Exhaust spring, 75 mm 582

6

14

853 355

Exhaust spring hooks

12

15 Safety Wire

842 758

THREADED WELD ON BOSS FOR  8MM EGT PROBES, NOT SHOWN

2



994 236
Gasket set 582 DCDI ignition engine 1

Rotax 582 exhaust system

Rotax 582 exhaust system parts

#

Part #

Description

1

850 633

Exhaust gasket, 582

2

973 121

Manifold assy, 582

4

950 141

Gasket ring 8x13

5

941 615

Capstan screw
M8x1 x1 0

6

945 752

Lock washer A8, 582

7

840 991

Allen screw M8x30,22NM

8

973 546

Inlet cone assy

9

973 175

Muffler can assy

10

853 355

Exhaust Hook 582

11

938 790

Springs, 75 mm, 582

12

973 180

Elbow, no hooks

973 182

Elbow w/hooks

13 976 540 Inlet cone 582

15

879 920

Outlet elbow assy

16

978 640

Outlet tube assy

17

878 660

Ball joint, male

18

878 666

Ball joint, female

19

Safety wire, .032 stainless

842 758

Threaded weld on boss for 8mm EGT probes, not shown

Rotax 582 exhaust system parts
Rotax 582 exhaust system parts
