Ultralight aircraft throttle cables, throttle controls, throttle and throttle quadrants

The first number is the number of cables the second number is the length of the cable. Thus AC-1 48 means 1 cable 48 inches in length.

AC-100 SERIES SINGLE CABLE ASSEMBLIES W/45 DEGREE SCREW IN CARB ADAPTERS

AC-1 48
AC-1 72
AC-1 96

AC-200 SERIES DUAL CARBURETOR CABLE ASSEMBLIES W/45 DEGREE CARB ADAPTERS
AC-2 48/503
AC-2 72/503
AC-2 96/503
AC-2 96/532

AC-300 SERIES DUAL CARBURETOR CABLE
ASSEMBLIES
WITH OIL INJ  (CYLINDER HEAD UP)
   W/45 DEGREE CARB ADAPTERS
AC-3 48 U/503
AC-3 48 U/582
AC-3 72 U/503
AC-3 72 U/582
AC-3 96 U/503
AC-3 96 U/582

AC-301 SERIES DUAL CARBURETOR CABLE ASSEMBLIES WITH OIL INJ. (CYLINDER HEAD DOW N) W/45 DEGREE CARB ADAPTERS
AC-3 48 D/503
AC-3 48 D/582
AC-3 72 D/503
AC-3 72 D/503
AC-3 96 D/503
AC-3 96 D/582

AC-CHOKE SERIES       CHOKE CABLE ASSEMBLIES
(FOR DUAL CARB) (W/90 DEGREE CARB ADAPTERS)
AC-CHK 48/503
AC-CHK 48/582
AC-CHK 72/503
AC-CHK 72/582
AC-CHK 96/503
AC-CHK 96/582

AC-RAVE SERIES         RAVE CONTROL CABLES (FOR ROTAX ONLY)
AC-RAV 48
AC-RAV 96

AC-912 SERIES THROTTLE CABLE ASSEMBLIES FOR ROTAX 912/914
AC-912 TC 48
AC-912 TC 72
AC-912 TC 96

CHOKE CABLE ASSEMBLIES FOR ROTAX 912/914
AC-912 CC 48
AC-912 CC 72
AC-912 CC 96

AC-TC SPLITTER MOUNTING BRACKET
PROVIDES NEAT SECURE MOUNT OF SPLITTER TO ENGINE/AIRFRAME.

AC-TC

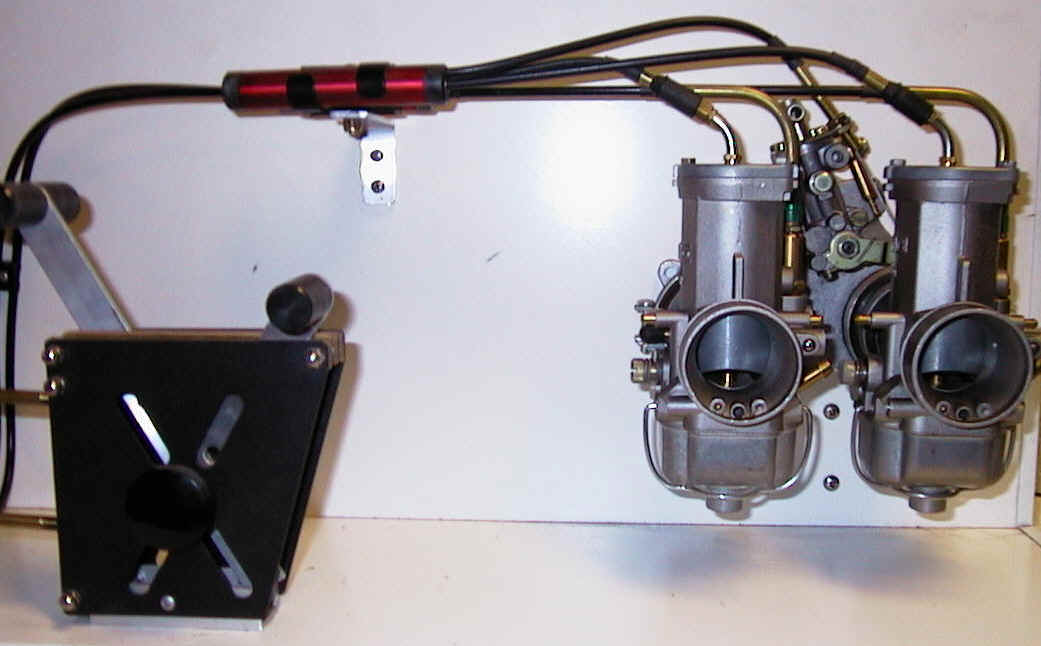

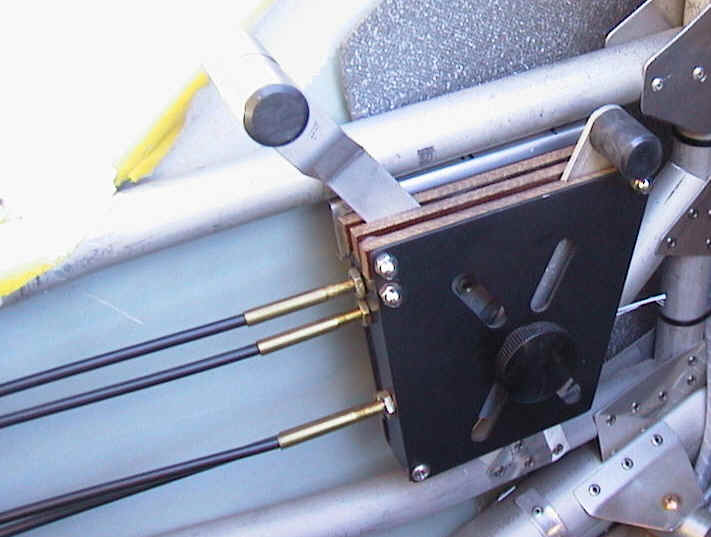

THROTTLE QUADRANTS

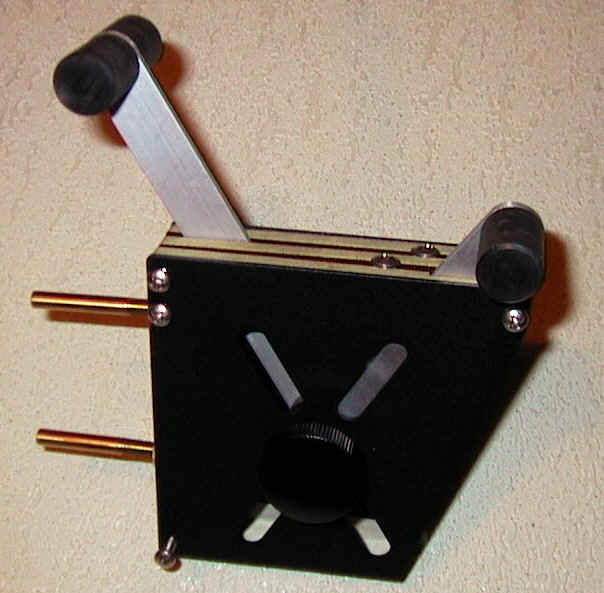

AC-Q1L - Single lever universal (both reversing and non-reversing available) friction lock standard. "T" style throttle lever handle. All wire swivels, cable adapters are included. Size 4.75"  x 4.75"

AC-Q2L Two lever universal - both reversing and non-reversing available, friction lock standard. "T" style throttle lever, handle has choke "lock out" on choke lever. All wire swivels, cable adapters are included  Size 4.75" x 4.75"


Three lever universal (both reversing and non-reversing available. Friction lock standard. "T" style throttle lever handle, has choke "lock-out" on choke lever. All wire swivels, cable adapters are included

Adapter kits - consists of all necessary hardware to connect two throttle quadrants, together for front/rear cockpit operation. Includes extra wire swivels, adjusters and cable housing.

Challenger throttle package, twin quadrant and cable set for Challenger ultralights.

Contains:
1 x AC Q2LC Quadrant
1 x AC-Q1LC Quadrant
1 x AC QAK adapter kit
1 x AC- 296/503 Cable assembly
1 x AC- CHKC96/503 Choke cable
1 x AC - Splitter mounting bracket
1 allen wrench

This kit can be easily adapter to any twin seat, tandem seating, Rotax powered  pusher ultralight.


Hardware to mount quadrants to airframe not included.
