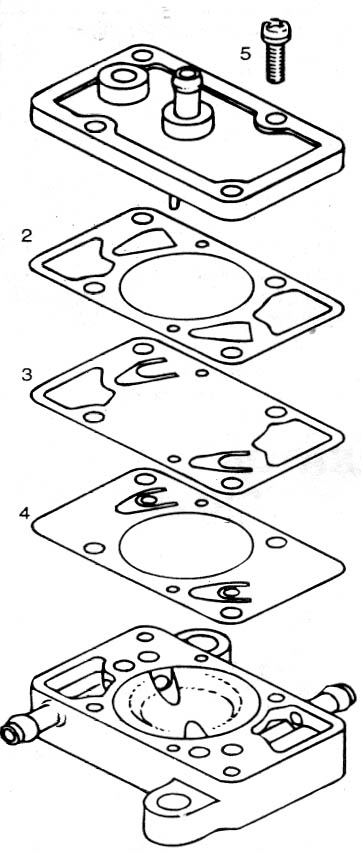

Mikuni single pump parts



#

Part #

Description

Qty Req.




1-5 994 482 Mikuni single pump, ROTAX 1

55.25

2-5 FPS Single pump rebuild kit  1

37.25

2 831 935 Cover gasket 1

5.75

3 861 137 Pump diaphragm  1

5.90

4 861 135 Pump case gasket 1

22.50

5 841 460 Combined screw M4x16 4

2.00


PK Primer kit   1

96.00

8 PRIMER VALVE Primer pump  1

29.95

9 415 0801 Primer line, 1/8 id/1/4 od 1

2.15

10 HCD-010P Clamp, 1/4 id 8

2.75

11 FFT148 1 Reduction t piece,1/4x1/4x1/8 1

3.50

12 HCD-010F Clamp, 3/8 id  2

2.75

13 FFT118 Reduction t piece,1/8x1/8x1/8  1

3.50

14 FFT114 T fitting, 1/4 1

3.50

15 414 3636 Fuel Filter 1

16.50

Mikuni aircraft fuel pump advisory pdf format

Labour rate at $79.95 per hour

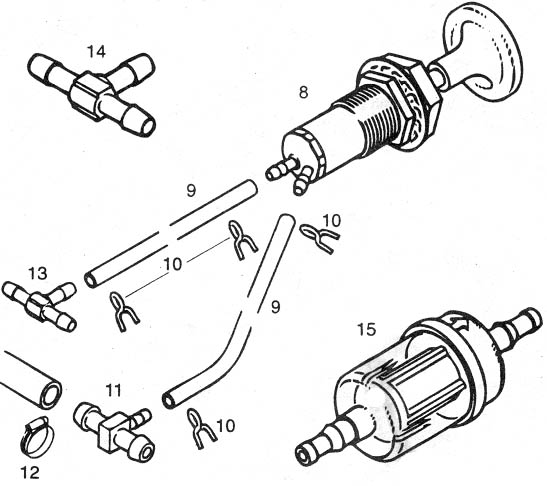

Rotax Bing Carburetor Primer parts
Rotax Bing Carburetor primer parts.



Single primer installation
