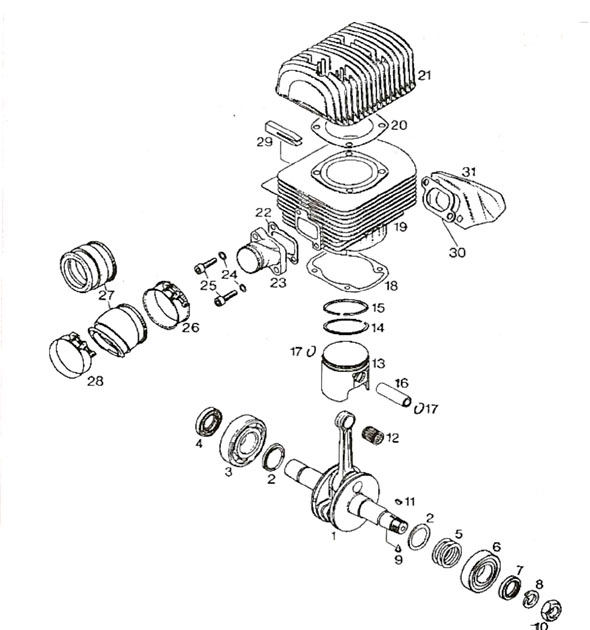

Rotax 277 crankshaft, cylinder, and intake

Click here to return to Rotax 277 main index


1	886 440	Crankshaft assembly	1
2	827 440	Distance ring	2
3	932 571	Ball bearing, PTO side	1
4	850 050	Oil seal, PTO side	1
5	944 582	Shim---.3	As required
	944 583	Shim---.1	As required
	944 584	Shim---.5	As required
	944 586	Shim---.2	As required
6	932 581	Ball bearing	1
7	230 425	Oil seal, magneto side	1
8	945 757	Lock washer 18	1
9	899 785	Loctite 222, violet	As required
10	942 220	Hex nut M18x1.5	1
11	246 055	Woodruff key	1
12	932 904	Use 832 320	2
13-15	996 245	Piston assembly., 72.0	2
	996 246	Piston assembly., 72.25	2
	996 247	Piston assembly., 72.50	2
14	915 850	Rect. ring, 72.0	2
	915 851	Rect. ring, 72.25	2
	915 852	Rect. ring, 72.50	2
15	215 235	Semi trapez. ring 72.0	2
	215 236	Semi trapez. ring, 72.25	2
	215 237	Semi trapez. ring, 72.50	2
16	916 185	Piston pin	2
17	945 735	Circlip 18	2
18	831 855	Base gasket	1
19	823 765	Cylinder w/sleeve, drive SS & HS	1
20	823 769	Cylinder w/sleeve, drive SZ & HZ	1
21	850 080	Head gasket	1
22	831 866	Intake gasket	1
23	867 421	Intake manifold, bent (not shown)	1
24	945 752	Lock washer A 8	2
25	840 991	Allen screw M8x30	2
26	951 400	Hose clamp	1
27	867 489	Socket, 30 degree	1
28	251 850	Hose clamp	2

29	860 100	Rubber fins	1
30	831 846	Exhaust manifold gasket	1
31	975 720	Air deflector/FC	1
