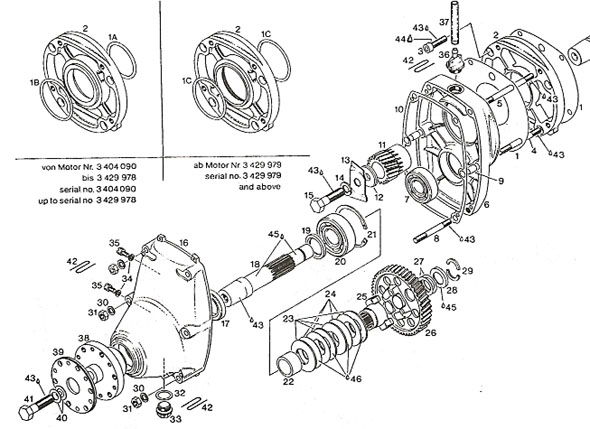

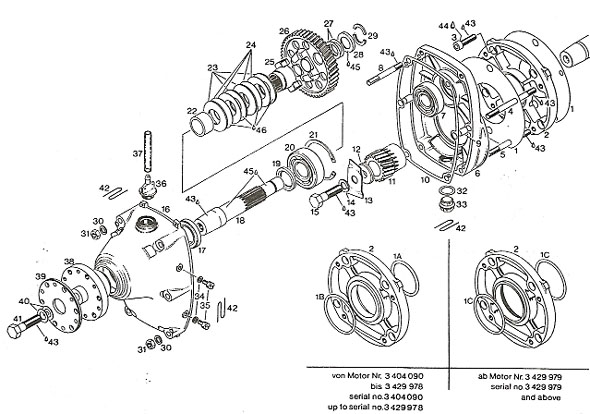

Rotax 277 Free air engine gear box installation gear box up, gear
box down.
When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!
Drive
shaft offset towards cylinder head, for FREE-AIR engine installation spark
plug up (SZ) or spark plug down (HZ)
1 930 620 Gasket type A up to 3404089 2
1B 850 400 O-ring from 3404090 up 1
2 910 360 Adaptor up to 3404089, use 910
362 1
2 910 361 Adaptor from 3404090 up, use 910
362
3 240 080 Allen screw M8x25 4
4 841 911 Stud M8x103.5 2
5 941 891 Stud M8x84 2
6 850 360 O-ring 3404090 up 1
7 910 862 Gear housing 1
8 932 091 Ball bearing 1
9 841 881 Stud M8x75 2
10 929 670 Dowel 10x13 2
11 930 533 Gasket 1
12 834 020 Not available alone, use 886 200 1
13 827 785 Washer 13/34/5 1
14 924 300 Oil slinger 1
15 945 766 Lock washer 1
16 841 656 Hex screw 1
17 910 371 Gear cover 1
18 850 055 Oil seal 30x47x7/7.5 1
19 937 985 Prop shaft 1
20 827 850 Distance ring 1
21 932 820 Ball bearing 1
22 445 070 Snap ring 1
23 847 500 Distance ring 1
24 939 020 Spring washer 4
25 939 025 Use 939 020 4
26 958 760 Dog hub 1
27 834 040 Not available alone, use 886
200 1
28 944 461 Shim---.3 As required
944 462 Shim---.5 As required
944 465 Shim---.15 As required
944 466 Shim---1.0 As required
29 827 840 Angular ring 1
30 827 860 Ring half 2
31 945 752 Lock washer A8 6
32 242 206 Hex nut M8 6
33 552 280 Gasket ring 1
34 440 116 Drain plug M18x1.5 1
35 830 890 Gasket ring 2
36 841 781 Capstan screw M6x10 2
37 941 110 Air vent screw w/gasket 1
38 974 532 Vent line 70mm 1
39 958 750 Prop hub 1
39 958 755 Prop hub for Falcon 1
40 827 830 Prop washer 1
41 845 340 Spring washer B12 2
42 841 731 Hex screw 1
42 SW032 Safety wire As required
43 899 785 Loctite 222, violet As required
44 899 788 Loctite 609, green As required
45 PSAS Anti-seize As required
46 BP Energrease As required
