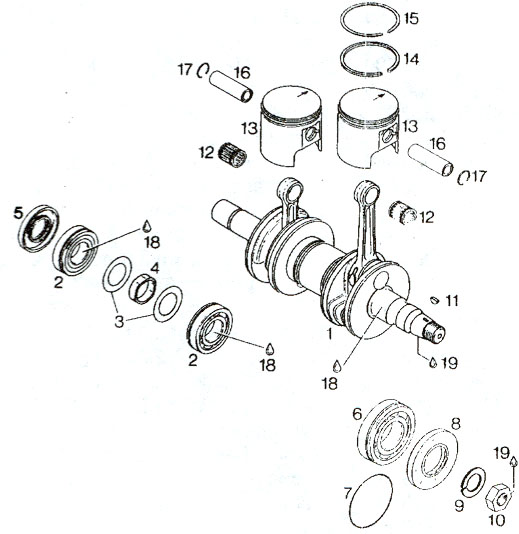

Older style Rotax 337 with provision 4 crankcase, points ignition.
#
 Part #
 Description
 Qty Req.
1 996 333 CRANKSHAFT ASSY AFTER #3793688 1
2 832 209 BALL BEARING, 6206, PROV-4 2
3 827 715 SHIM, 30,4/51/1 PROV-4 2
4 847 395 STOP TUBE, BALL BRNG CGE PROV-4 1
5 830 748 OIL SEAL, PTO SIDE 30X62X7/7,5 PROV-4 1
6 832 231 BALL BEARING, 6207 1
7 830 355 O-RING 49, 2-1.8 1
8 831 950 OIL SEAL, MAG SIDE 30X72X7/8,5 1
9 945 759  LOCK WASHER A22 1
10 842 230 HEX NUT, M22X1,5 1
11 246 055 WOODRUFF KEY, 3X3,7 1
12 932 904 CAGE STYLE WRIST PIN BEARING 2
13 -15 994 975 PISTON ASSY W/2 RINGS 2 62.0 MM
STANDARD (377) 		2
  994 976 PISTON ASSY W/2 RINGS 2 62.25 MM
1 ST OVERSIZE (377) 		2
  887 477 PISTON ASSY W/2 RINGS 2 62,5 MM,
2ND OVERSIZE (377) 		2
14 915 890 RECTANGULAR RING 62,0 MM 2
STANDARD (377) 		2
  915 891 RECTANGULAR RING 62,25 MM 2
1ST OVERSIZE (377) 		2
  915 892 RECTANGULAR RING 62,5 MM 1
2ND OVERSIZE (377) 		2
15 215 210 SEMI- TRAPEZE RING 62,0 MM 2 STANDARD (377) 2
  215 211 SEMI- TRAPEZE RING 62,25 MM 2 1ST OVERSIZE (377) 2
  215 212 SEMI- TRAPEZE RING 62,5 MM 2 2ND OVERSIZE (377) 2
16 916 260 PISTON PIN 377 2
17 945 735 CIRCLIP 18 4
18   ANTI SEIZE
19   LOCTITE 222 VIOLET
Rotax 377 index Rotax index Main index

Rotax 337, Rotax 377 crankshaft, pistons, rings, seals and bearings
Bosch points ignition provision 4 crankcase.
