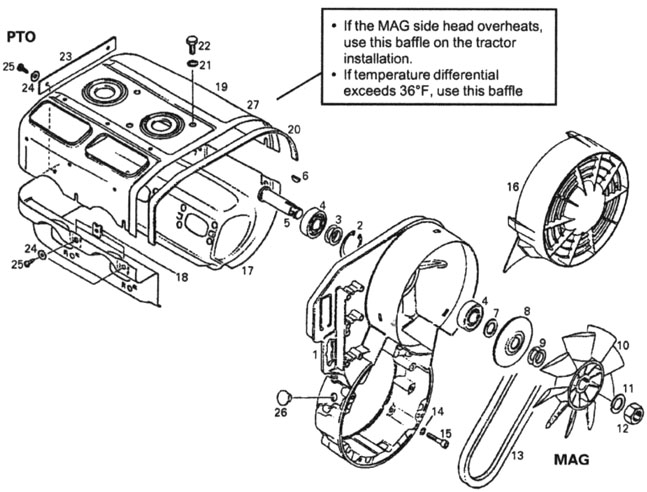

Rotax 377 fan cowl parts, Rotax 377 parts. |
|
|
|
|
Click on arrow to move through manual or store. |
| # |
Part # |
Description |
Qty |
| 1 | 912 998 | 377 fan housing points | 1 |
| 912 997 | 377 fan housing CDI | 1 | |
| 2 | 945 880 | LOCKING RING 40x1. 75 | 1 |
| 3 | 244 585 | SHIM 17.5/24/1.0 | 2 |
| 4 | 832 161 | BALL BEARING 6203 | 2 |
| 5 | 937 940 | FAN SHAFT | 1 |
| 6 | 246 015 | WOODRUFF KEY 3x5 | 1 |
| 7 | 827 650 | DISTANCE SLEEVE 17x3/28/2. | 1 |
| 8 | 980 496 | PULLEY HALF | 1 |
| 9 | 827 080 | SHIM 17.5/27/0.5 | 4 |
| 9 | 827 082 | SHIM17.5/27/0. | 4 |
| 10 | 866 295 | FAN | 1 |
| 11 | 945 756 | LOCK WASHER A16 | 1 |
| 12 | 942 285 | HEX NUT M16x1.5 1 | 1 |
| 13 | 980 436 | V-BELT 10x6x590 | 1 |
| 14 | 945 751 | LOCK WASHER A6 | 4 |
| 15 | 840 887 | ALLEN SCREW M6x30 | 4 |
| 16 | 975 740 | FAN COVER | 1 |
| 17 | 910 054 | CYLINDER COWL LOWER | 1 |
| 18 | 842 390 | SPRING NUT V4.8 | 6 |
| 19 | 912 027 | CYLINDER COWL UPPER | 1 |
| 20 | 960 961 | SEALING STRIP 440mm | 1 |
| 21 | 945 752 | LOCK WASHER A8 3 | 3 |
| 22 | 940 581 | HEX SCREW M8x16 | 1 |
| 23 | 951 140 | REINFORCEMENT | 1 |
| 24 | 845 270 | WASHER 4.9/15.5/0.8 | 6 |
| 25 | 841 495 | SCREW B4.8x16 | 6 |
| 26 | 960 270 | PLUG | 1 |
| 27 | 975 780 | BAFFLE RETRO-FITTABLE, STEEL | 1 |
|
|
|||
