Rotax 377 cylinder, Rotax 377 base gaskets, Rotax 377 intake manifold and top end parts.
HOME PAGE

Rotax aircraft engine prices.

When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

Click on arrow to move through manual or store.
#

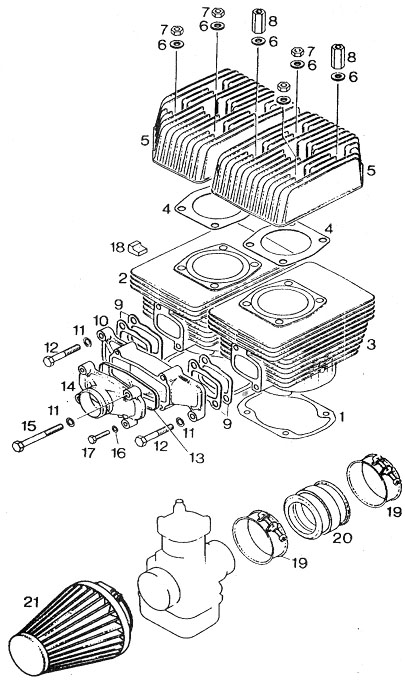

 Part #
 Description
1 850 105 GASKET, CYL FLANGE, 377
2 823 796 CYLINDER w/SLEEVE PTO, 377
3 823 805 CYLINDER w/SLEEVE MAG, 377
4 850 131 GASKET, CYLINDER HEAD, 377
5 823 821 CYLINDER HEAD, 377
6 847 470 CONE SLEEVE, 377
7 242 206 HEX NUT M8
8 842 010 DISTANCE NUT M8x27.5, 377
9 831 866 GASKET, INTAKE MANIFOLD
10 867 430 INTAKE MANIFOLD
11 945 752 LOCK WASHER A8
12 940 616 HEX SCREW M8x40
13 850 190 RUBBER RING 78x1.5x3.5
14 867 445 INTAKE COVER
15 841 311 HEX SCREW M8x75
16 945 751 LOCK WASHER A6
17 240 036 HEX SCREW M6x25
18 860 060 SUPPORT DAMPER
19 951 510 HOSE CLAMP B52
20 867 484 RUBBER SOCKET

Return to Main Index for this section
