| The early Rotax aircraft engines provision 4 cases used a Bosch

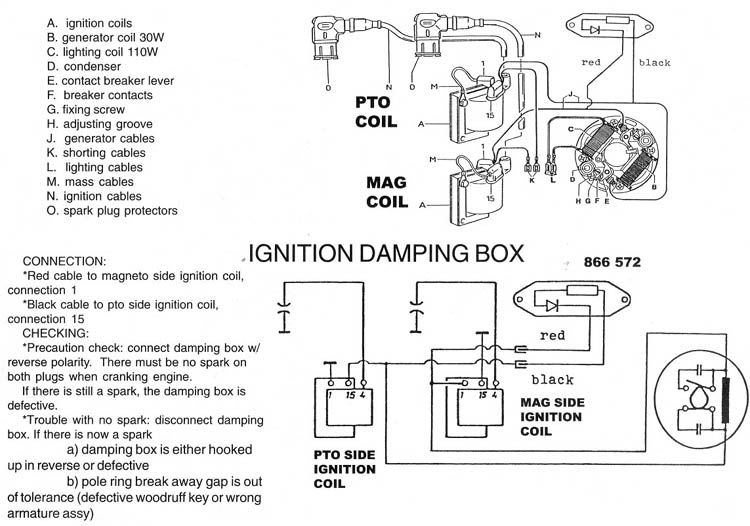

ignition system. Below is the wiring diagram for the Bosch ignition
system.
Note that on one ignition coil the ground wire is number #1 while on the other coil the grounding wire is #14. |
