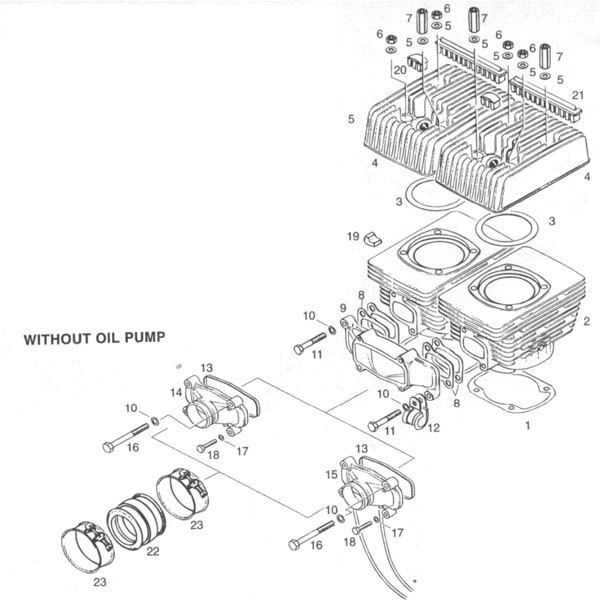

Rotax 503 top end parts


#
 Part #
 Description

Qty Req.
1 831 855
 Gasket, Cyl Base 2
2
 923 416
 Cylinder With Sleeve
 2
3
 831 881
 Gasket, Cylinder Head
 2
4
 823 669
 Cylinder Head Dual ignition
 2
  823 663 Cylinder Head Single ignition 2
5
 250 311
 Washer
 8
6
 242 206
 Hex Nut
 4
7
 842 050
 Distance Nut
 4
8
 831 866
 Gasket, Intake
 4
9 867 450
 Intake Manifold
 1
10
 945 752
 Lockwasher
 4
11
 940 616
 Hex Screw M8x40
 2
12 851 100 Cable clamp 18 1
13 850 150
 Rubber Ring    1
14
 867 465
 Intake Cover
with NO Oil Injection		 1
15 867 450 Intake Cover
With Oil Injection		 1
16 841 301
 Hex Screw M8x64
 2
17 945 751
 Lockwasher 2
18 941 501
 Hex Screw M6x30
 2
19
 860 060
 Support Damper
 1
20
 860 095
 Noise Damper, Short
 4
21 860 090 Noise Damper, Long 4
22
 867 484
 Rubber Socket
 1
23
 951 510
 Hose Clamp
 2
  994 861 Gasket set 503 points ignition engine 1
  994 236 Gasket set 503
DCDI ignition engine		 1

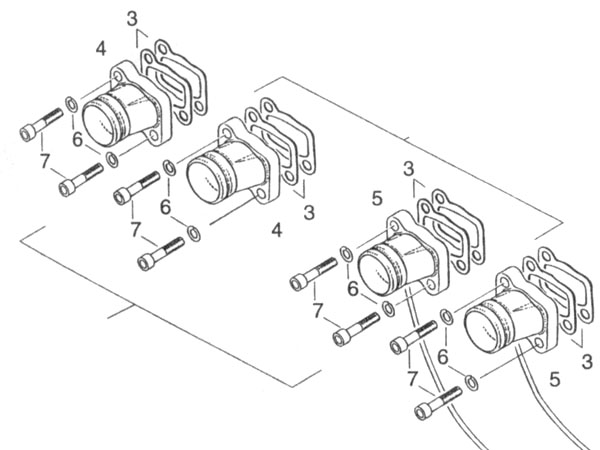

Rotax 503 dual intake manifold parts


# Part # Description

Qty Req.
3
 831 866
 Intake Gasket 1 mm
 4
4
 867 400 Intake manifold - no oil injection 2
5
 867 407
 Intake manifold with oil injection 2
6
 945 752
 Lock washers 4
7 840 681 Allen screws M8X40 4
9 951 510 Hose clamps 4
22 867 484 Rubber intake socket 2
994 485 Dual Mikuni fuel pump 1
  887 822 Bing Carb
