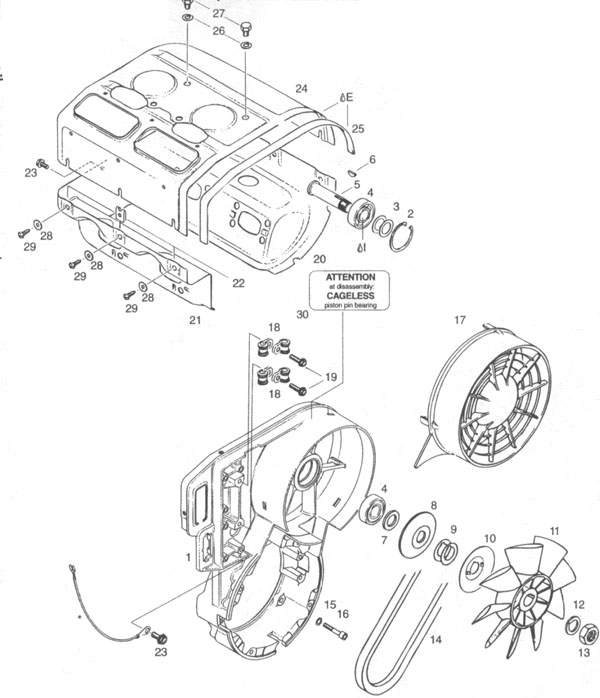

Rotax 503, Rotax 503 fan parts, Rotax 503 aircraft
engine fan parts.
|
|
|
|
 |
|
|
|
|
Rotax 503 fan parts, Rotax 503 engine cooling system
parts.
|
|
|
#
|
Part #
|
Description
|
Qty
Req.
|
| 1 |
912 206 |
Fan Housing
SN3946508 + up |
1 |
| 2 |
945 880 |
Ball Bearing 35-72-17 |
1
|
| 3 |
244 585 |
Shim
|
2 |
| 4 |
832 160 |
Ball Bearing |
2 |
| 5 |
937 940 |
Fan Shaft |
1 |
| 6 |
246 015 |
Woodruff Key |
1 |
| 7 |
827 650 |
Distance Sleeve |
1 |
| 8 |
980 496 |
Pulley Half |
1
|
| 9
|
827 080 |
Shim |
4 |
| 10 |
980
523 |
Protection Washer |
1 |
| 11 |
866 292 |
Fan |
1 |
| 12 |
945 756 |
Lockwasher |
1 |
| 13 |
942 285 |
Hex Nut |
1
|
| 14 |
980 511 |
V-Belt 10x7x610 |
1 |
| 15 |
945 751 |
Lockwasher |
4 |
| 16 |
840 880 |
Allen Screw M6x30 |
4 |
| 17 |
975 695 |
Fan Cover |
1 |
| 19 |
853 412 |
Cable Clamp |
4 |
| 20 |
941 250 |
Taptite Screw |
2 |
| 21 |
810
543 |
Cowl |
1 |
| 22 |
911 067 |
Cowl |
1 |
| 23 |
240 385 |
Taptite Screw |
1 |
| 24 |
842 390 |
Spring Nut |
8 |
| 25 |
912 215 |
Cowl, Upper |
1 |
| 26 |
960 961 |
Sealing Strip |
1 |
| 27 |
945 752 |
Lockwasher |
4 |
| 28 |
940 581 |
Hex Screw M8x16 |
4 |
| 29 |
845 270 |
Cowl Washer |
8 |
| 30 |
841 495 |
Screw |
8 |
|
994
236
|
Gasket set 503 DCDI ignition engine |
1
|
|
|
|
|
|
 |
