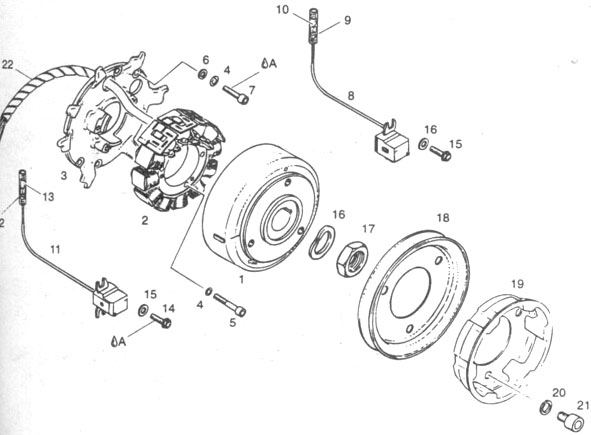

Rotax 503 Ducati ignition generator magneto
Click here for Rotax 503 Ducati ignition wiring diagram

# Part # Description Qty Req.

1-2 996 832  Magneto generator 12W150 1
1 996 820  Magneto flywheel 1
2 996 844 Coil kit P12W150 1
2-5 996 840 Stator plate assy. 1
966 207 Stator plate 1
4 945 750 Lock washer A5 5
5 940 880 Allen screw M5x30, 6NM 3
6 927 571 Washer 5.3 2
7 840 515 Allen screw M5x18, 7NM 2
8-11 965 767 Pickup assy., ignition circuit 1 1
9 964 072 Insulation sheath 1
10 964 067 Faston connector 3.96 1
11-14 965 761 Pickup assy., ignition circuit 2 1
12  964 072 Insulation sheath 1
13 964 067 Faston connector 3.96 1
14 941 925 Taptite screw M5x16, 6NM 4
15 827 800 Washer A5.5 4
16 945 759 Lock washer 22 1
17  842 230 Hex nut M22x1.5, 95NM 1
18 980 485 V belt pulley 1
19 852 412 Starting pulley 1
20 845 310 Lock washer V HZ 8 3
21 841 520 Allen Screw M8x12 3
22 966 062 Spiral hose 70mm 1

994 236
Gasket set 503 DCDI ignition engine 1
