Rotax 582 pistons, Rotax 582 crankshaft, Rotax 582 rings, Rotax 582 bearings, seals and gaskets.




When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

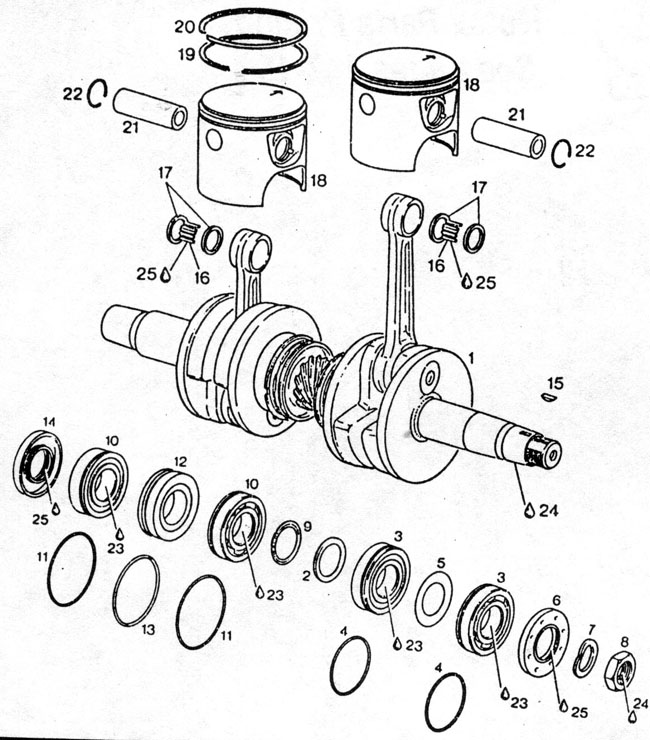

Rotax 582 crankshaft, pistons, rings, seals and gaskets
# Part # Description Qty Req.
1 887 051 CRANKSHAFT ASSY. 1
2 827 440 SPACER RING, 30.5/42/2 1
3 832 209 BALL BRG 6206 N TVH, 30-62-16 2
4 830 355 O-RING, 49.2-1.8 2
5 827 715 STOP SHIM, 30.4/5111 1
6 830 748 OIL SEAL, 30X62X717.5 1
7 945 759 LOCK WASHER, 22 1
8 842 230 HEX.NUT,M22X1.5 1
9 827 760 DISTANCE RING, 35.5/47/2 1
10 832 231 BALL BRG 6207, N TNH/35-72-17 2
11 250 165 O-RING 64-2 " 2
12 830 292 LABYRINTH SLEEVE 1
13 830 370 O-RING 63-2.5 1
14 831 950 OIL SEAL, 35X72X718.5 1
15 246 055 WOODRUFF KEY, 3X3.7 1

16-17		 832 320 CAGELESS NEEDLE BEARING,
18X22X17.8 2 THRUST WASHER,		 2
18 888 590 PISTON ASSY. 75.95 75.96mm STD 4
888 591 PISTON ASSY. 76.20 76.21mm 1ST 2
  888 592 PISTON ASSY. 76.45 76.46mm 2ND 2
19 215 200 RECTANGULAR RING STD 2
  215 201 RECTANGULAR RING 1ST 2
215 202 RECTANGULAR RING 2ND 2
20 915 820 SEMI-TRAPEZ RING STD 2
915 821 SEMI- TRAPEZ RING 1ST 2
915 822  SEMI-TRAPEZ RING 2ND 2
21 916 136  PISTON PIN, 18X11X53.7 2
22 945 735 CIRCLIP 18 4
23 297 431 LOCTITE ANTI-SEIZE 109r
24 899 785 LOCTITE 221 VIOLET 1Occ
25 CORNING GN PASTE
886 230 ROTAX 582 GASKET SET
1

Rotax 582 pistons, seals, rings, and gaskets
