Rotax 582 Blue head rotary valve shaft, Rotax Blue head 582 rotary valve shaft parts.





When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

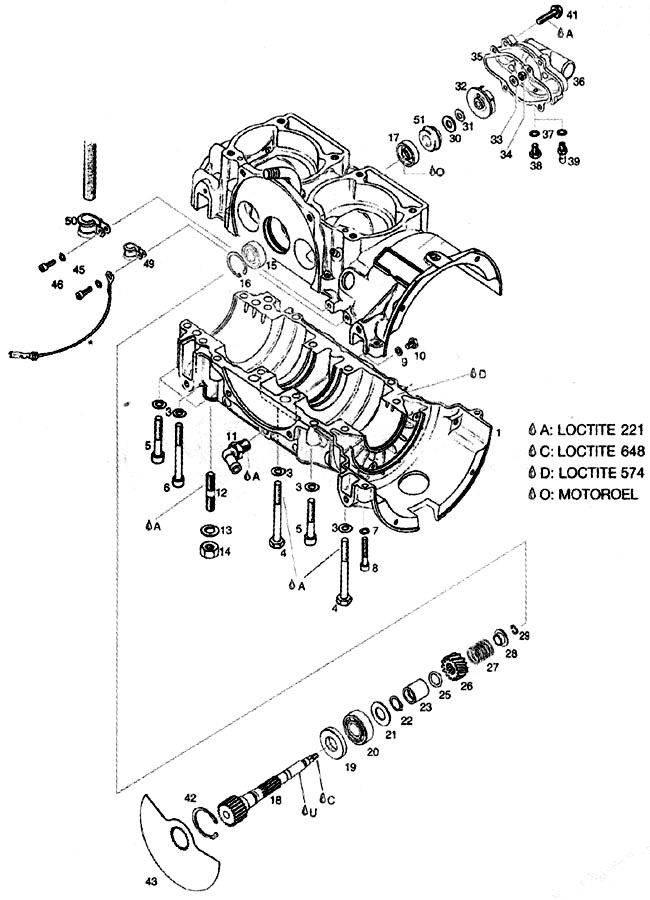

Rotax Blue head 582 rotary valve shaft parts.

1-12 888 471 CRANKCASE ASSY
1-29, 42 886 221 CRANKCASE ASSY
with rotary valve drive

3

945 752  LOCK WASHER A8

4

841 301 HEX SCREW M8x5

5

640 942 ALLEN SCREW M8x5

6

841 831 ALLEN SCREW

7

945 751 LOCK WASHER A6

8

241 811 ALLEN SCREW M6x35

9

230 415 GASKET RING A 6x10

10

240 771 HEX. SCREW M6x10

11

922 245 ANGULAR TUBE 1/4-18 NPT

12

940 190 STUD M 10x29/20

13

945 753 LOCK WASHER A10

14

242 091 HEX. NUT N10

15

932 797 B. BEARING 6201-2, 12-32-1

16

245 420 RETAINING RING 32x1.2

17

850 710 OIL SEAL 10x30x8

18

837 243 ROTARY VALVE SHAFT

19

930 580 OIL SEAL 20x40x7

20

932 032 B. BEARING 6203 TVH C3,
17-40-12
21 227 439 SHIM 17.2/32.5/1.5

22

845 450 RETAINING RING 17X1

23

847 282 SPACER

25

831 500 O-RING 14-3

26

935 735 ROTARY VALVE GEAR 14 T

27

938 810

COMPRESSION SPRING,
25.1 mm

28

827 430 SPRING HOLDING CUP

29

845 160 CIRCLIP 12

30

227 945 THRUST WASHER
8.1/15/0.5
31 227 155 FRICTION WASHER
32 922 036 IMPELLER
33 244 211 WASHER 6.4
34 842 042 LOCK NUT M6
35 831 616 GASKET
36 922 501 WATER PUMP HOUSING
37 830 890 GASKET RING 6.2/8.9/1
38 841 580 HEX. SCREW H6x8
39 940 558 HOSE NIPPLE M6
For evacuation of air, at installation of engine with spark plugs down
41 240 031 HEX SCREW M6X25
42 845 260 SNAP RING 40X1.75
43 924 504 ROTARY VALVE
132' Cut-off section
for engine type 582/48 and 582/40
45 945 750 LOCK WASHER A5
46 840 511 ALLEN SCREW M5X16
49 851 110 CABLE CLAMP
50 851 113 CLAMP 18/M5
51 650 370 ROTARY SEAL
886 230 ROTAX 582 GASKET SET
886 230 ROTAX 582 GASKET SET
A. Rotary vale for configuration with rotary seal (582 UL DCDI Mod. 99)
B. The circlip must be positioned at the inner groove only (582 UL DCDI Mod. 99)
E. Crankcse including rotary valve drive, configuration with rotary seal model 99.
