Rotax 582 oil injection tank, Rotax 618 oil injection tank, Rotax 503 oil injection tank.





When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

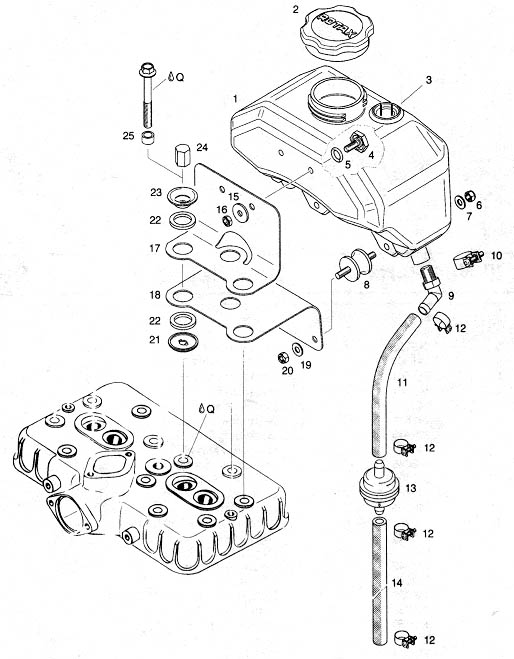

Rotax 582, Rotax 618 oil injection tank assembly.
#
 Part #
 Description

Qty
Req.
1-25 881 465 Oil tank with bracket and mounting hardware 1
1-16 881 460 Oil tank assembly 1
2 874 105 Oil tank cap 1
3 956 360 Oil level indicator 1
4 841 931 Tightening screw 1
5 430 030 0 ring 9.3x2.4 2
6 842 042 Lock nut M6 - 2
7 244 211 Washer 6.4 2
8 260 657 Rubber buffer 25x20xM6 2
9 922 245 Angular tube, 1/4-1/8npt 1
10 853 725 Clamp 17/9 1
11 956 230 Oil line, (By Meter) 1
12 951 260 Clamp 14 4
13 825 701 Oil filter, in line 1
14 956 230 Oil line, (By Meter) 1
15 227 900 Washer 6.2/20/2 2
16 242 031 Hex nut M6 1
17 851 230 Oil tank bracket, upper 1
18 851 235 Oil tank bracket, lower 1
19 842 042 Lock nut M6 2
20 244 211 Washer 6.4 2
21 944 092 Shim, 8.2 3
22 960 865 Rubber washer 18/26/3 6
23 827 817 Cup washer 3
24 842 321 Cap nut M8 3
25 847 794 Spacer, for 582'99 only 3

Rotax 582 oil injection tank kit side mount.
