Rotax 582 intake manifold, Rotax 582 carb sockets, Rotax 582 Rotary valve and Rotax 582 oil pump.





When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!


Rotax 582 carb intake sockets, Rotax 582 carb sockets.

#

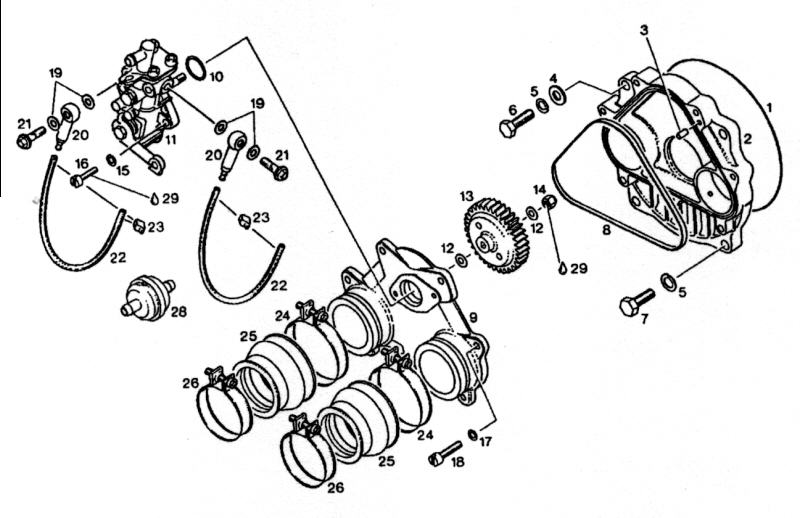

Part #
Description Qty Req.
1 831 360 O-RING 132-1,7 1
2 910 316 ROTARY VALVE COVER ASSY. 1
3 929 650 DRIVE PIN 5X10 1
4 250 311 WASHER 8.4 4
5 945 752 LOCK WASHER A8  4
6 240 276 HEX. SCREW M8X25 2
7 940 591 HEX. SCREW M8X20  2
8 831 700 RUBBER RING 126X1.5X3.5 1
9 910 320 PUMP MOUNTING FLANGE 1
10 230 370 O-RING 18-1.3  1
11 995 527 OIL PUMP ASSY.  1
12 927 945 WASHER 6.2/12/1 2
13 935 940 OIL PUMP GEAR 44 T  1
14 842 040 LOCK NUT M6  1
15 945 750 LOCK WASHER A5 ,  2
16 240 761 SLOTTED HEAD SCREW, M5X16 2
17 945 751 LOCK WASHER A6 7
18 940 561 CYL. SCREW M6X20  7
19 227 500 GASKET RING 6.2/12/1 4
20 956 010 CHECK VALVE ASSY.  2
21 241 830 BANJO BOLT M6X16
2
22 960 561 OIL LINE 170 MM 2
23 853 840 CLAMP 3-5 MM  4
24 851 065 CLAMP 62  2
25 867 696 CARBURETOR SOCKET 2

When purchasing new carburetor sockets be sure that the clamps on the new carbs are #53 #48, the use of improper clamps can cause the sockets to fail.

To extend the life of your rubber sockets: Before installing new sockets, wipe mounting flanges on engine, inside of clamps and outside of sockets with acetone. Install sockets, clamps and carburetors. Lightly wipe the exposed rubber surfaces with silicone-dielectric grease.

26 951 400

CLAMP 53

2

28 825 701

OIL FILTER

1

29 899 785

LOCTITE 221 VIOLET
