Rotax 618 pistons, Rotax 618 crankshaft, Rotax 618 rings, Rotax 618 bearings, seals and gaskets.





When was the last time you did maintenance on your K & N Airfilter? Is you filter safety wired? Click here to see how to clean and safety wire your airfilter!

Return to Rotax 618 parts index

Return to Rotax 618 main index


# Part # Description Qty Req.
1 886 631 CRANKSHAFT ASSY. 1
2 827 445 SPACER RING, 30.5/42/2 1
3 932 589 BALL BRG 6206  TVH, 30-62-16 2
4 827 050 RETAINING DISK 1
5 830 748 OIL SEAL, 30X62X717.5 1
6 827 765 DISTANCE RING, 35.5/47/2 1
7 832 231 BALL BRG 6207, N TNH/35-72-17 2
8 250 165 O-RING 64-2 " 2
9 830 294 LABYRINTH SLEEVE 1
10 830 370 O-RING 63-2.5 1
11 927 710 RETAINING DISK 1
12 831 950 OIL SEAL, 35X72X718.5 1
13 945 759 LOCK WASHER, 22 1
14 842 230 HEX.NUT,M22X1.5 1
15 246 055 WOODRUFF KEY, 3X3.7 1
16-17 832 320 CAGELESS NEEDLE BEARING,
18X22X17.8 2 THRUST WASHER,		 2
18 888 590 PISTON ASSY. 75.95 75.96mm STD 4
888 591 PISTON ASSY. 76.20 76.21mm 1ST 2
  888 592 PISTON ASSY. 76.45 76.46mm 2ND 2
19 215 200 RECTANGULAR RING STD 2
  215 201 RECTANGULAR RING 1ST 2
215 202 RECTANGULAR RING 2ND 2
20 915 820 SEMI-TRAPEZ RING STD 2
915 821 SEMI- TRAPEZ RING 1ST 2
915 822  SEMI-TRAPEZ RING 2ND 2
21 916 136  PISTON PIN, 18X11X53.7 2
22 945 735 CIRCLIP 18 4
23 297 431 LOCTITE ANTI-SEIZE 109r
24 899 785 LOCTITE 221 VIOLET 1Occ
25 CORNING GN PASTE
886 230 ROTAX 618 GASKET SET
1

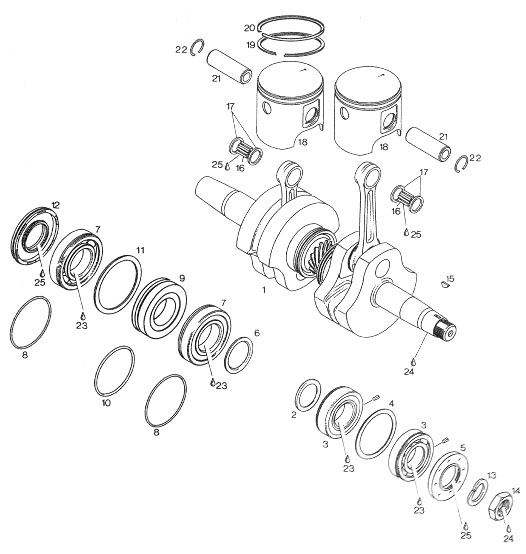

Rotax 618 crankshaft, pistons, rings, seals and gaskets
Rotax 618 crankshaft, pistons, rings, seals and gaskets
