Rotax 912, Rotax 912 S, Rotax 914 oil tank assembly
|
|
|
|
|
Click to visit Excalibur Aircraft. |
|
 |
|
|
| Rotax 4 stroke 80 hp, 100 hp and 0il tank assembly |

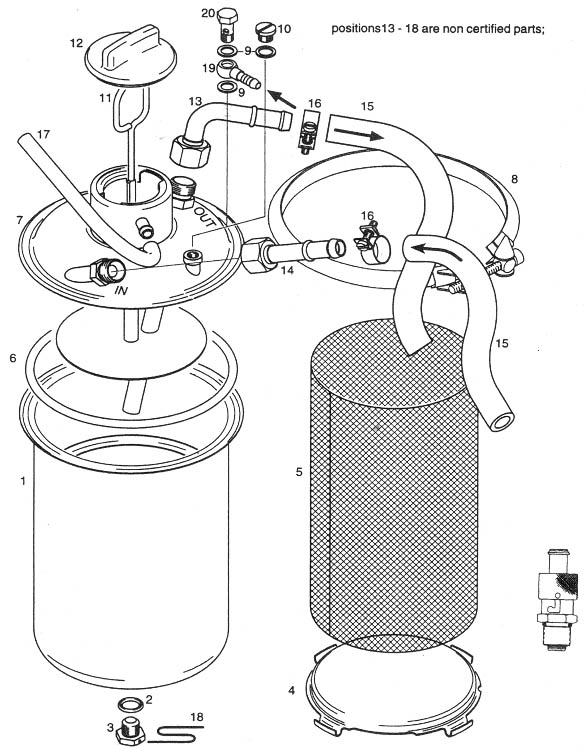

Rotax 912 series oil tank
assembly
| No. |
Part# |
Description |
912UL |
912A |
912F |
912ULS |
912S |
914UL |
914F |
| 1-12 |
956 502 |
Oil tank assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 1 |
956 426 |
Oil tank assembly w/baffle |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 2 |
250 010 |
Gasket ring C 12x18 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 3 |
241 403 |
Hex screw M12x12 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 4 |
956 197 |
Partition 2 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 5 |
956 204 |
Baffle insert |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 6 |
850 490 |
O ring 145x6 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 7 |
956 436 |
Oil tank cover assembly |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 8 |
951 817 |
Profile clamp 163 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 9 |
230 150 |
Gasket ring 10x14 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
| 10 |
440 061 |
Slotted head screw M10 |
1 |
1 |
1 |
1 |
1 |
|
|
| 11 |
956 150 |
Oil dipstick |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 12 |
974 647 |
Oil tank cover |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
| 13 |
956 580 |
Bent socket assembly |
2 |
2 |
|
2 |
|
2 |
2 |
| 14 |
956 610 |
Hose nipple w/union |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| 15 |
956 391 |
Oil tube 1500mm |
1 |
1 |
|
1 |
|
1 |
|
| 16 |
853 725 |
Clamp SP 17/9 |
4 |
4 |
|
4 |
|
4 |
4 |
| 17 |
|
Venting tube |
NB |
NB |
NB |
NB |
NB |
NB |
NB |
| 18 |
SW032 |
Safety wire, .032" |
NB |
NB |
NB |
NB |
NB |
NB |
NB |
| 19 |
956 314 |
Hose nipple 4/6 |
|
|
|
|
|
1 |
1 |
| 20 |
940 874 |
Banjo bolt M10x1x19 |
|
|
|
|
|
1 |
1 |
NOTE: Oil line is 12mm i.d. (1/2"), use
#AQPH8, part# is for 1 ft, order appropriate quantity for your installation.
Threaded drain valve now made for the Rotax 912 oil tank, threads directly into
existing drain hole on bottom of tank. Locks open,
#M12175,
|
|
|
|
|
|
|
