ROTAX 912 CYLINDER HEAD INTAKE MANIFOLD, FILTER

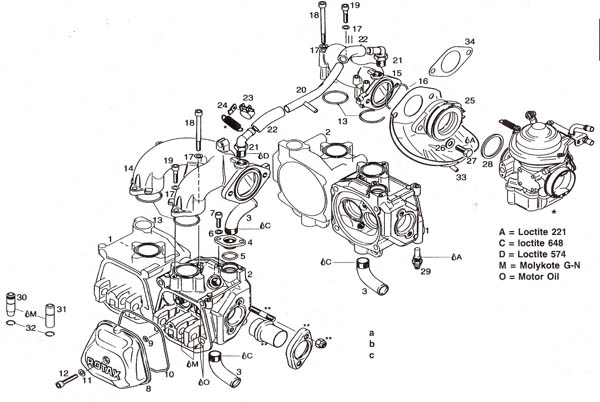

Rotax 912 cylinder head, Rotax 912 intake manifold.

No. Part# Description 912UL 912A 912F 912ULS 912S 914UL 914F
1 913 425 Cylinder head 2/3 assembly 2a 2a 2a 2a 2a
913 428 Cylinder head 2/3 assembly 2a 2a
2 913 435 Cylinder head 1/4 assembly 2b 2b 2b 2b 2b
913 438 Cylinder head 1/4 assembly 2b 2b
3 922 230 Bent socket 80 degrees 8 8 8 8 8 8 8
922 232 Bent socket 45 degrees 8 8 8 8 8 8 8
4 922 302 Flange 4 4 4 4 4 4 4
5 950 180 O ring 19-2 4 4 4 4 4 4 4
6 945 751 Lockwasher A6 8 8 8 8 8 8 8
7 241 903 Allen screw M6x20 8 8 8 8 8 8 8
8 911 627 Valve cover 4 4 4
911 628 Valve cover 4 4
911 629 Valve cover 4 4
9 430 205 O ring 6.4x1.8 4 4 4 4 4 4 4
10 250 285 O ring 105x2.5 4 4 4 4 4 4 4
11 927 940 Washer 6.0/12/1 4 4 4 4 4 4 4
12 840 887 Allen screw M6x30 4 4 4 4 4 4 4
13 230 910 O ring 34x2 4 4 4 4 4 4 4
14 867 683 Intake manifold 1c 1c 1c 1a 1a 1c 1c
15 867 688 Intake manifold 1d 1d 1d 1b 1b 1d 1d
16 230 290 O ring 47-2 2e 2e 2e 2e 2e
230 300 O ring 47-2 2f 2f 2f 2 2 2f 2f
17 945 751 Lock washer A6 8 8 8 8 8 8 8
18 241 871 Allen screw M6x70 4g 4g 4g 4g 4g
19 840 861 Allen screw M6x25 4f 4f 4f 4 4 4f 4f
20 924 540 Compensating tube 4 4 4 4 4 4 4
21 922 245 Angular tube 1/4-18npt 1 1 1 1 1 1 1
22 956 143 Tube 66mm 2 2 2 2 2 2 2
23 853 720 Clamp 15/9 2 2 2 2 2 2 2
24 953 400 Bracket 2 2 2 2 2 2 2
25 267 787 Rubber flange 2k 2k 2k 2k 2k 2k 2k
26 250 311 Washer 8.4 4 4 4 4 4 4 4
27 240 276 Hex screw M8x25 4 4 4 4 4 4 4
28 847 890 Spacer ring 36/43/2.5 2k 2k 2k 2k 2k 2k 2k
29 965 530 Temperature sensor 2 2 2 2 2 2 2
30 253 117 Inlet valve guide 4h 4h 4h 4h 4h
253 112 Inlet valve guide 4h 4h
31 854 227 Outlet valve guide 4i 4i 4i 4i 4i
854 222 Outlet valve guide 4i 4i
32 245 440 Retaining ring A12 8 8 8 8 8 8 8
33 874 300 Drip tray 2 2
34 931 640 Gasket 2j 2j 2j 2j 2j
a For cylinders 2 and 4
b For cylinders 1 and 3
c For cylinders 2 and 4
From engine#
912UL 4402979
912F 4412783
912A 4410336
914UL 4417728
914F 4420129
d For cylinders 1 and 3
From engine#
912UL 4402979
912F 4412783
912A 4410336
914UL 4417728
914F 4420128
e Engine type from to
912UL 4402662 - 4402978
912F 4412720 - 4412782
912A 4410169 - 4410335
914UL 4417708 - 4417727
914F 4420011 - 4420128
f From engine#
912UL 4402979
912F 4412783
912A 4410336
914UL 4417728
914F 4420129

g

 Up to engine# (only if engine was not fitted with intake manifolds #867 683/867 688)
912UL 4402978
912F 4412782
912A 4410335
914UL 4417727
914F 4420128
h For inlet valve
i For outlet valve
j Only on intake manifold without o ring
k Do not use spacer ring #847-890, new intake socket (267 787) is shallower and doesn't need.
