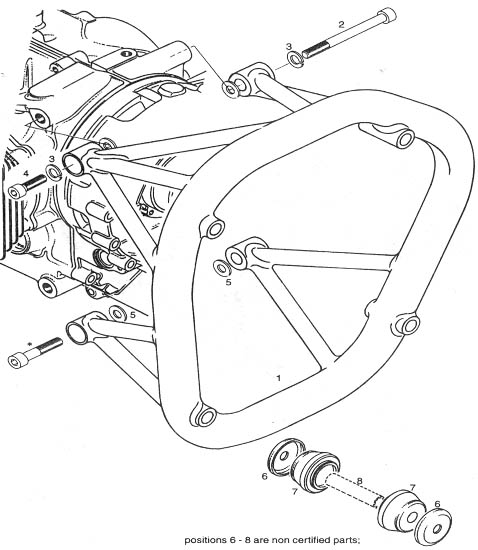

ROTAX 912 ENGINE SUSPENSION FRAME

No.	Part#	Description	912UL	912A	912F	912ULS	912S	914UL	914F
1	886 567	Engine suspension frame	1	1	1	1	1	1	1
2	941 481	Allen screw M10x110	1	1	1	1	1	1	1
3	945 753	Lock washer A10	4	4	4	4	4	2	2
4	840 941	Allen screw M10x35	3	3	3	3	3	1	1
5	927 952	Thrust washer 10.1/20/.5	NB	NB	NB	NB	NB	NB	NB
	927 953	Thrust washer 10.1/20/1.0	NB	NB	NB	NB	NB	NB	NB
6	944 240	Cup washer	8	8	8	8	8	8	8
7	860 690	Shock mount	8	8	8	8	8	8	8
8		Strut**	NB	NB	NB	NB	NB	NB	NB

NB=Dependant upon installation, use as required
*Choose length of screw so that 25mm of penetration is achieved
**Choose length of distance tube so that 5mm of pre-tension is applied to the shock mount set (applicable for above listed shock mount only)
