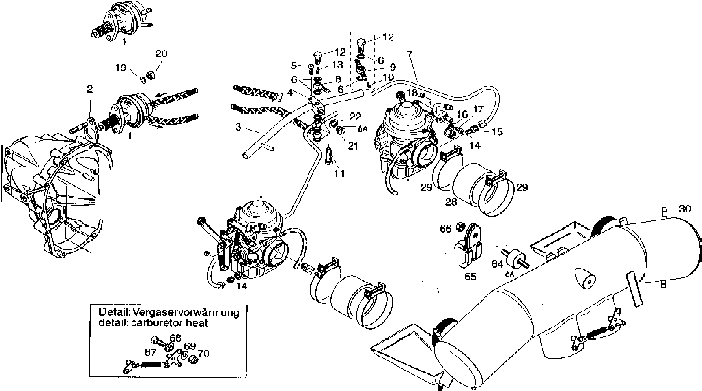

ROTAX 912 FUEL LINES, AIRBOX FUEL PSI CONTROL UNIT

912/914 Carburetor Heat

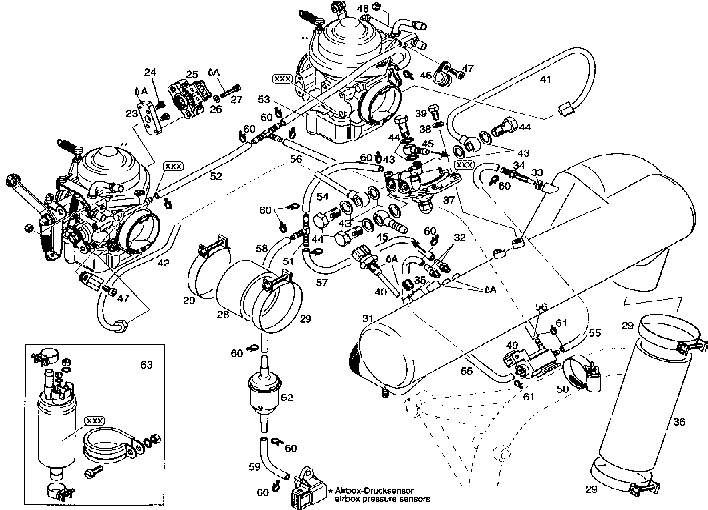

912/914 Airbox Pressure Sensors
No. Part# Description 912UL 912A 912F 912ULS 912S 914UL 914F
1 996 594 Fuel pump set 1a 1a 1a
1 996 596 Fuel pump assembly 1a 1a
1 996 593 Fuel pump assembly 1b 1b 1b
2 950 220 Gasket 1 1 1 1 1
3 924 540 Compensating tube assembly 1 1 1 1 1
4 851 325 Clamp block 1 1 1 1 1
5 840 511 Allen screw M5x16 1 1 1 1 1
6 950 141 Gasket ring A8x13 5 5 5 5 5
7 874 294 Fuel hose assembly 1 1 1 1 1
8 956 312 Hose nipple 3/4 1 1 1 1 1
9-10 956 602 Double hose nipple assembly 1c 1c 1c 1c 1c
10 963 820 Pilot jet 35 1 1 1 1 1
11 940 872 Banjo bolt M8x1x27 1 1 1 1 1
12-13 941 785 Banjo bolt assembly 1d 1d 1d 1d 1d
12 941 790 Banjo bolt M8x1x17 1 1 1 1 1
13 963 820 Pilot jet 35 1 1 1 1 1
14 950 141 Gasket ring A8x13 2 2 2 2 2
15 941 850 Fuel line connector 2 2 2 2 2
16 851 115 Cable clamp M5 2 2 2 2 2
17 241 841 Allen screw M5x12 2 2 2 2 2
18 842 030 Lock nut M5 2 2 2 2 2
19 945 752 Lock washer A8 2 2 2 2 2
20 242 206 Hex nut M8 2 2 2 2 2
21 440 061 Slotted head screw M10x1x8 1 1 1 1 1
22 230 150 Gasket ring M10x14 1 1 1 1 1
23 861 930 Adaptor 1k 1k
24 640 181 Slotted head screw M4x7 2k 2k
25 966 480 Throttle valve position sensor 1k 1k
26 244 073 Washer 4.3 2k 2k
27 841 030 Combined screw M4x22 2 2 2k 2k
28 860 982 Connecting hose 35mm 4 4 2 2
29 851 060 Clamp 60 6 6
30 867 758 Airbox assembly 1b 1b 1b 1b 1b
31-35 867 753 Airbox assembly 1 1
32 940 558 Hose nipple M6 2 2
33 242 031 Hex nut BM6 1 1
34 940 554 Nipple M6 1 1
35 240 480 Plug screw 1/8-27npt 1 1
36 860 983 Air intake hose 1 1
37 867 130 Fuel pressure regulator assembly 1 1
38 945 751 Lock washer A6 2 2
39 241 186 Hex screw M6x16 2 2
40 966 435 Resistance thermometer 1e 1e
966 430 Resistance thermometer 1f 1f
41 874 280 Fuel hose assembly 2/4 1g 1g
42 874 290 Fuel hose assembly 1/3 1h 1h
43 230 150 Gasket ring 10x14 8 8
44 940 874 Banjo bolt M10x1x19 4 4
45 956 314 Hose nipple 4/6 2 2
46 851 115 Cable clamp M5 2 2
47 241 841 Allen screw M5x12 2 2
48 842 030 Lock nut M5 2 2
49 874 310 3 way solenoid valve 12v 1 1
50 851 420 Clamp 30-45 1 1
51 874 270 T piece 6-6-6 2 2
52-58 860 660 Hose 4x7 As required
53 200mm hose As required
54 310mm hose As required
55 110mm hose As required
56 130mm hose As required
57 75mm hose As required
58 40mm hose As required
59 1000mm hose As required
No. Part# Description 912UL 912A 912F 912ULS 912S 914UL 914F
60 851 370 Clamp 8 15 15
61 851 410 Clamp 6.8 3 3
62 825 735 Fuel filter 1i 1i
63 996 735 Fuel pump 2j 2j
64 960 150 Rubber buffer 20x15xm6 1 1
65 853 010 Cable clamp M6 1 1
66 842 040 Lock nut 1 1
67 241 846 Allen screw M5x12 1 1 1 1 1
68 847 740 Graduated sleeve 1 1 1 1 1
69 827 800 Washer 5.5 1 1 1 1 1
70 842 030 Lock nut M5 1 1 1 1 1
a marked with serial#, inclusive of suction and pressure line
b marked with serial#
c With fuel pressure gauge connection; when converting from 956 312 to 956 602 remove jet 963 820 from banjo bolt
d Marked with yellow dot
e Not for TCU part 966 470
f Only for TCU part 966 470
g For cylinders 2/4
h For cylinders 1/3
i Used as water tap
j With attachment kit, marked with serial#
k Also included in carburetor for 914 cylinders 2/4
