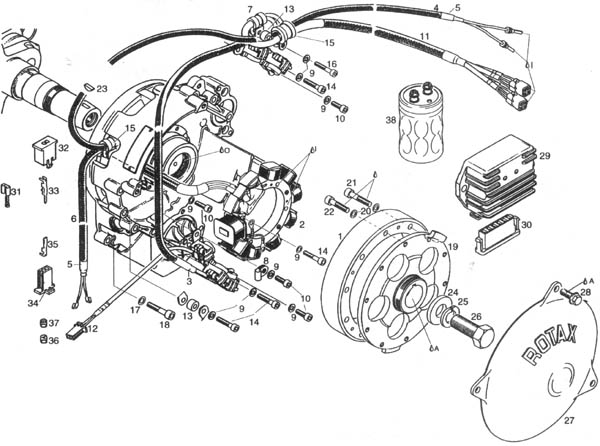

ROTAX 912 MAGNETO GENERATOR

Rotax 912 magneto, Rotax 912 magneto generator, Rotax 912 charging system.

No. Part# Description 912UL 912A 912F 912ULS 912S 914UL 914F
1-6 886 434 Generator 1 1
1-6 886 432 Generator 1 1 1 1 1
1 965 192 Magneto ring 1 1 1 1 1 1 1
2-6 888 670 Stator assembly 1 1
2-6 996 539 Stator assembly 1 1 1 1 1
3 860 531 Shrink hose 25mm 2 2 2 2 2 2 2
4 965 623 Screening metal braid 460mm 1 1 1 1 1 1 1
5 860 533 Shrink tube 25mm 2d 2d 2d 2d 2d 2d 2d
6 965 626 Screening metal braid 640mm 1 1 1 1 1 1 1
7 851 110 Cable clamp 8/M5 1 1 1 1 1 1 1
8 851 117 Cable clamp 7/M5 1 1 1 1 1 1 1
9 945 750 Lock washer A5 12 12 12 12 12 12 12
10 840 511 Allen screw M5x16 4 4 4 4 4 4 4
11 965 177 Trigger coil kit 1 1 1 1 1 1 1
12 264 085 Trigger coil assembly 1a 1a 1a 1a 1a 1a 1a
13 847 660 Spacer 5.2/12/7.4 4 4 4 4 4 4 4
14 240 186 Allen screw M5x25 7 7 7 7 7 7 7
15 851 250 Cable clamp 15/M5 2 2 2 2 2 2 2
16 940 881 Allen screw M5x30 1 1 1 1 1 1 1
17 945 751 Lock washer A6 7 7 7 7 7 7 7
18 840 880 Allen screw M6x30 7 7 7 7 7 7 7
19 965 184 Flywheel hub 1 1 1 1 1
965 188 Flywheel hub 1 1
20 945 751 Lock washer A6 5 5 5 5 5 5 5
21 840 880 Allen screw M6x30 5 5 5 5
22 840 861 Allen screw M6x25 5 5 5 5 5 5 5
23 246 570 Woodruff key 4x5 1 1 1 1 1 1 1
24 944 070 Washer 17/36/5 1 1 1 1 1 1 1
25 945 758 Lock washer 16 1 1 1 1 1 1 1
26 841 601 Hex screw M16x1.5x40 1 1 1 1 1 1 1
27 810 980 Ignition cover (1) (1) (1) 1 1 1 1
28 640 171 Hex screw M6x16 (3) (3) (3) 3 3 3 3
29-30 965 347 Rectifier regulator 1 1 1 1 1 1 1
30 965 335 Connector housing 1 1 1 1 1 1 1
31 864 011 Faston connector 6.3x.8 NB NB NB NB NB NB NB
32 265 252 Connector housing 2 pole NB NB NB NB NB NB NB
33 265 272 Faston connector NB NB NB NB NB NB NB
34 265 250 Connector housing 2 pole NB NB NB NB NB NB NB
35 265 270 Faston connector NB NB NB NB NB NB NB
36 960 010 Shrinkable hose, imprinted NBb NBb NBb NBb NBb NBb NBb
37 960 015 Shrinkable hose, imprinted NBc NBc NBc NBc NBc NBc NBc
a For rev counter signal
b Marking sleeve "A" for shorting cable, ignition circuit A
c Marking sleeve "B" for shorting cable, ignition circuit B
d Lighting cable part# 860 531 has been replaced with 860 533
