Rotax 914 turbo charger control unit.
|
|
|
|
|
Click to visit Excalibur Aircraft. |
|
 |
|
|

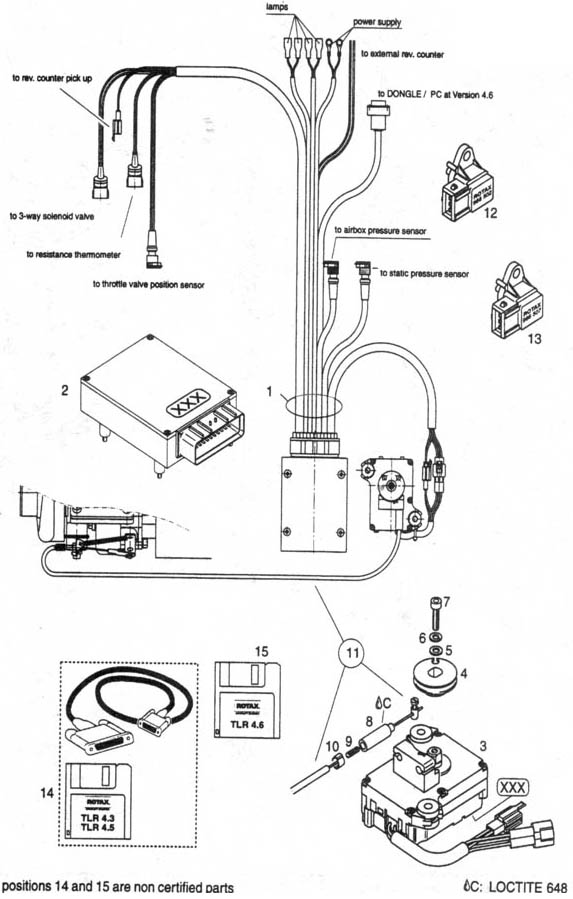

TURBOCHARGER CONTROL UNIT
| No. |
Part# |
Description |
912UL |
912A |
912F |
912ULS |
912S |
914UL |
914F |
| 1 |
966 490 |
Wiring Harness |
|
|
|
|
|
1 |
1 |
| 2 |
966 473 |
Turbocharger control unit |
|
|
|
|
|
1a |
|
|
966 741 |
Turbocharger control unit |
|
|
|
|
|
1b |
1b |
| 3 |
295 410 |
Servo motor |
|
|
|
|
|
1c |
1c |
| 4 |
280 085 |
Rope sheave |
|
|
|
|
|
1 |
1 |
| 5 |
827 800 |
Washer 5.5 |
|
|
|
|
|
1 |
1 |
| 6 |
945 750 |
Lock washer A5 |
|
|
|
|
|
1 |
1 |
| 7 |
240 181 |
Allen screw M5x20 |
|
|
|
|
|
1 |
1 |
| 8 |
847 881 |
Cable retainer |
|
|
|
|
|
1 |
1 |
| 9 |
239 015 |
Compression spring 16.9 |
|
|
|
|
|
1 |
1 |
| 10 |
853 845 |
Clamp 5-7mm |
|
|
|
|
|
1 |
1 |
| 11 |
897 941 |
Cable bowden assembly |
|
|
|
|
|
1 |
1 |
| 12 |
966 502 |
Airbox pressure sensor |
|
|
|
|
|
1d |
1d |
| 13 |
966 507 |
Static pressure sensor |
|
|
|
|
|
1e |
1e |
| 14 |
966 670 |
Monitoring set |
|
|
|
|
|
1f |
1f |
| 15 |
966 672 |
Monitoring program |
|
|
|
|
|
1g |
1g |
| a |
Version 4.5 is used from the
following engine serial# 914UL #4417598 |
|
Version only replaceable with
part# 966 741 |
| b |
Version 4.6 is used from the
following engine serial# 914F #4420200 |
|
Retrofit of older engines
possible according to service bulletin |
| c |
Marked with serial# |
| d |
Airbox pressure sensor |
| e |
Ambient pressure sensor |
| f |
With dongle and data cable to
the computer, only for #996 470/471 |
| g |
Only for part# 966 741 (version
4.6) |
|
|
|
|
|
|
|
