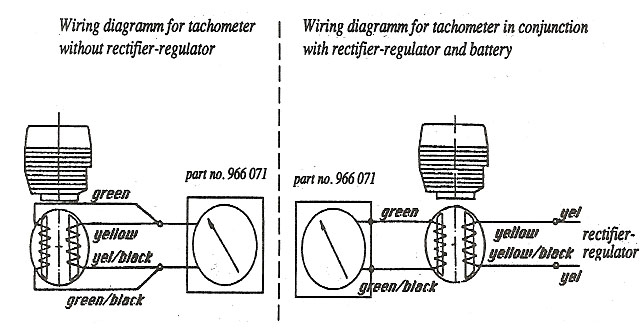

One of the things that many pilots fail to realize is that the output
wires from the engine to the tachometer need to be shielded if a radio is
installed on their aircraft. In addition the ignition shut off wires and
the charging system wires ALSO need to be shielded!
These three systems, ignition, tachometer and charging all can cause
radio static or interference just as an improperly connected strobe light
can.
How to minimizing noise in
radio and intercoms:
Most strobe driver units are designed with filtering and internal
shielding to keep radio interference to a minimum, however occasionally
noise will be heard over the radio or intercom This noise is almost
always caused by the way the systems have been installed. One must
remember that noise does not always come from the power that is being
supplied to your equipment. Click here for more information

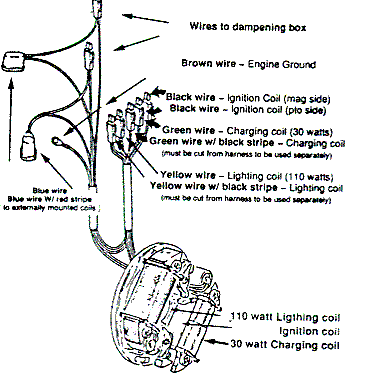

ELECTRONIC SHIELDING OF IGNITION
SYSTEMS ON TWO STROKE Ultralight Engine Info This information is provided as
a guide for shielding your aircraft for the successful installation and
operation of any AM radio system. Engines used in ultralight aircraft
are traditionally two stroke 20 to 75 horse-power units which use a
magneto to generate electric current in order to produce a high energy
spark for ignition. This type of ignition is reliable and effective and
used on most aircraft utilizing gasoline-fueled engines.
Click here for more info!
