GEAR DRIVE TOOLS

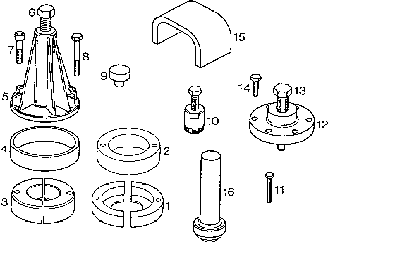

277 GEAR DRIVE TOOLS
| Illustration Number |
Part# |
Description |
Quantity |
|
| 1 |
876 890 |
Ring half, drive gear
puller |
2 |
|
| 2 |
876 560 |
Distance ring, drive gear
puller |
1 |
|
| 3 |
876 330 |
Ring half for ball bearing |
2 |
|
| 4 |
977 480 |
Ring for puller |
1 |
|
| 5-6 |
876 296 |
Puller assembly for
bearing |
1 |
|
| 6 |
940 755 |
Hex screw |
1 |
|
| 7 |
840 680 |
Cylinder screw, M8x40 |
2 |
|
| 8 |
841 201 |
Hex screw M8x70, for drive
gear puller |
2 |
|
| 9 |
876 552 |
Protection mushroom |
1 |
|
| 10 |
276 808 |
Gear puller for internal
threads |
1 |
|
| 11 |
241 475 |
Hex screw |
2 |
|
| 12-13 |
876 865 |
Puller assembly for prop
hub |
1 |
|
| 13 |
876 870 |
Hex screw M16x1.5 |
1 |
|
| 14 |
940 480 |
Hex screw M8x30 |
6 |
|
| 15 |
876 880 |
Mounting bracket |
1 |
|
| 16 |
876 666 |
Oil seal insertion jig |
1 |
|
| |
LT242 |
Loctite 242, blue |
1 |
|
| |
LT680 |
Loctite 680, green |
1 |
|
| |
995 780 |
Gear drive gasket set |
|
|
| |
|
|
|
|
|
|
|
