Rotax 582, Rotax 582 electric start, Rotax 582
electric starter motor parts.
|
|
|

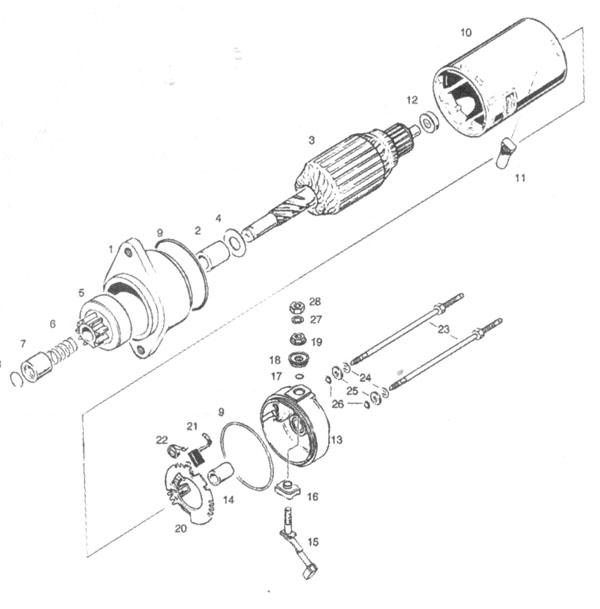

Rotax 582 electric start, internal electrical parts.
|
|
# |
Part # |
Description |
Qty
Req. |
1-26 |
995 430
|
Electric Starter
Assembly
|
1 |
1-2 |
866 880 |
Drive Housing
Assembly |
1 |
2 |
|
Bushing |
1 |
3 |
866 870 |
Rotor Assembly |
1 |
4 |
927 050 |
Thrust Washer
15,3/24/1
|
1 |
5 |
866 850
|
Overrunning-Clutch Drive Assembly
|
1 |
6 |
939 030 |
Spring |
1 |
7 |
927 040 |
Stop collar |
7 |
8 |
845 360 |
Circlip |
1 |
9 |
850 500 |
O-Ring 62-1.5
|
2 |
10 |
866 860 |
Yoke Assembly
|
1 |
11 |
860 600 |
Venting Rubber |
1 |
12 |
827 600
|
Shim
|
nb |
13 |
|
End Frame with
Sleeve
|
1b |
14 |
|
Bushing
|
1c |
15 |
866 892 |
Carbon Brush with
Screw |
1 |
16 |
260 820 |
Isolating Bushing
|
1 |
17 |
230 530 |
O-Ring 6x1.7
|
1 |
18
|
260 800 |
Connector Sheath
|
1 |
19
|
242 780 |
Combined Nut M6
|
1 |
20-22
|
866 890 |
Brush Holder with
Springs
|
1 |
21
|
|
Brush |
1d |
22
|
|
Spring |
1a |
23 |
841 860 |
Screw M5 |
2 |
24
|
945 750 |
Lock Washer A5
|
2 |
25
|
827 800 |
Washer A 5,5
DIN
6902 |
2 |
26
|
850 510 |
O-Ring 4,7x1.4
|
2 |
27
|
945 751 |
Lock Washer A6
DIN 128 |
1 |
28 |
242 211
|
Hex Nut M6 |
1 |
|
NOTE*
a Bushing, not available as spare part, use drive housing assembly
Part No.866-880.
b End frame with sleeve, not available as spare part, use end
frame assembly
Part No.866-900.
c Bushing, not available as spare part, use drive housing assembly
Part No.866-900.
d Brush, not available as spare part, use brush holder assembly
Part No.866-890.
e Spring, not available as spare part, use brush holder assembly
Part No.866-890.
|
|
|
1
2 3
