Quicksilver MX stabilizer, Quicksilver MX straight stabilizer parts
diagram.
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|

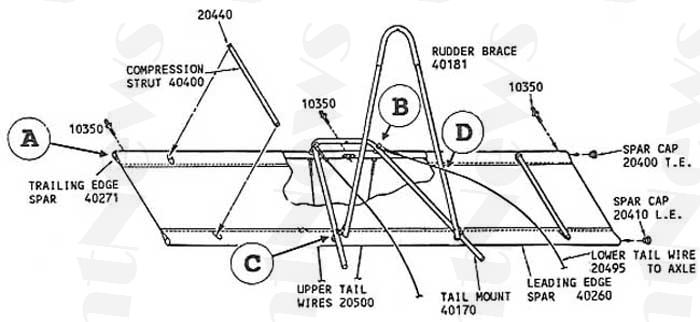

Quicksilver MX straight stabilizer parts diagram.
|
|
| Because of constant price changes from suppliers it is difficult
to provide up to date pricing on the internet for Quicksilver parts.
If you would like a quote on prices select the product(s) you require,
and then check out, and we will email you a quote with the latest
pricing, and shipping charges. |
|
| There is a charge for the price quote which is refundable with an
order. |
|
| 20440 |
Conn,Tube 7/8 X 1 |
|
| 40400 |
Strut, Stab Comp Y/DQ/QE/MX/II |
|
| 40181 |
Brace, Rudder All |
|
| 20400 |
Cap, Tube 7/8" X .035 |
|
| 40271 |
Spar, Stab., TE Y/MX/II/IIA |
|
| 20410 |
Cap, Tube 1" X .035 |
|
| 20495 |
Wire, Tail Lower MX/II |
|
| 40260 |
Spar, Stab, L.E. MX/II |
|
| 40170 |
Tube, Tail Mnt Xcpt MXH/IIHP/L |
|
| 20500 |
Wire, Tail Upper MX,MXII |
|
| A |
|
|
| B |
|
|
| C |
|
|

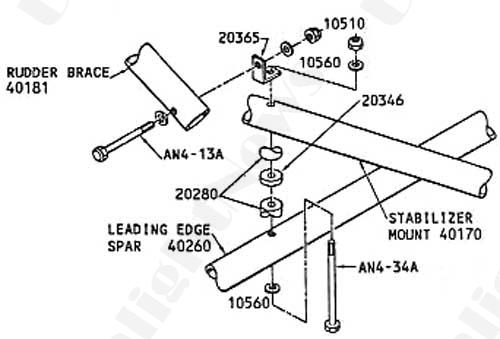

| 20365 |
Tang, 90 Degree |
|
| AN4 13A |
AN4-13A bolt |
|
| AN4n |
Nut |
|
| AN4w |
Washer |
|

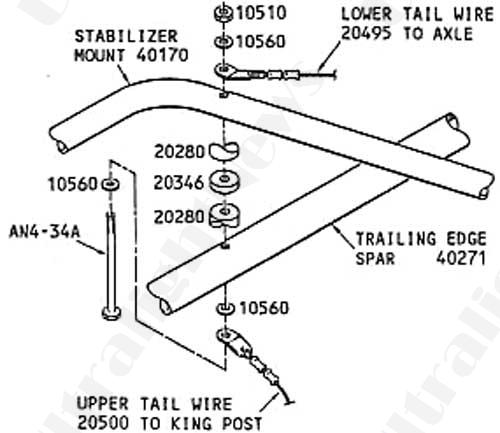

| 20280 |
Saddle, 1" X 1/4" |
|
| 20346 |
Washer, Nylon 1" X 1/4" |
|
| AN4 34A |
AN4-34A bolt |
|

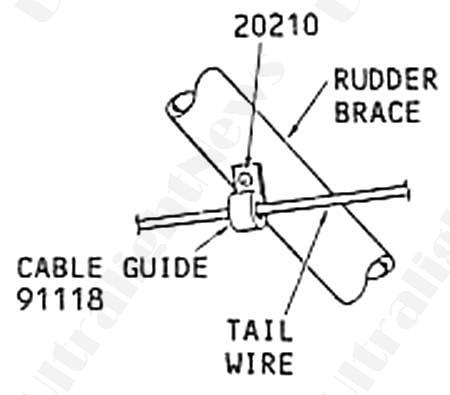

| 91118 |
Guide, Cable |
|
| |
|
| |
|
|
|
|
|
|
|
