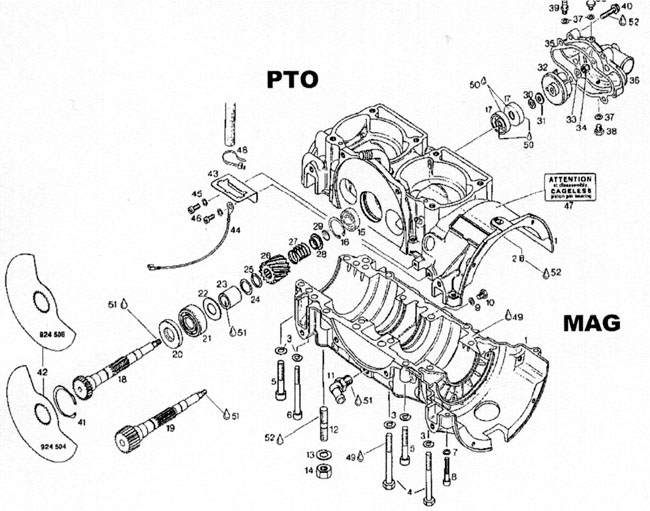

Rotax 532 Rotary valve shaft, seals, and gaskets.



# Part # Description Qty Req.
1 995 536 CRANKCASE ASSY 1

3

 945 752  LOCK WASHER A8 14

4

 841 301 HEX SCREW M8x5 6

5

 640 942 ALLEN SCREW M8x5 6

6

 841 831 ALLEN SCREW 2

7

 945 751 LOCK WASHER A6 2

8

 241 811 ALLEN SCREW M6x35 2

9

 230 415 GASKET RING A 6x10 1

10

 240 771 HEX. SCREW M6x10 1

11

 922 245 ANGULAR TUBE 1/4-18 NPT 1

12

 940 190 STUD M 10x29/20 4

13

 945 753 LOCK WASHER A10 4

14

 242 091 HEX. NUT N10 4

15

 932 797 B. BEARING 6201-2, 12-32-1 1

16

 245 420 RETAINING RING 32x1.2 1

17

 850 710 OIL SEAL 10x30x8 1

18

 937 969 ROTARY VALVE SHAFT 1A

20

 930 580 OIL SEAL 20x40x7 1

21

 932 032 B. BEARING 6203 TVH C3,
17-40-12		 1
21 227 439 SHIM 17.2/32.5/1.5 1

22

 827 510 SHIM 15.3/32.5/0.5 1

23

 847 280 SPACER 15.2/22/24 1

25

 831 500 O-RING 14-3 1

26

 935 730 ROTARY VALVE GEAR 14 T 1

27

938 810

COMPRESSION SPRING,
25.1 mm

1

28

 827 430 SPRING HOLDING CUP 1

29

 845 160 CIRCLIP 12 1B

30

 227 945 THRUST WASHER
8.1/15/0.5 		1
31 227 155 FRICTION WASHER 1
32 922 036 IMPELLER 1
33 244 211 WASHER 6.4 1
34 842 042 LOCK NUT M6 1
35 831 616 GASKET 1
36 222 388 WATER PUMP HOUSING 1
37 830 890 GASKET RING 6.2/8.9/1 1
38 841 580 HEX. SCREW H6x8 1
39 940 558 HOSE NIPPLE M6
For evacuation of air, at installation of engine with spark plugs down		 1
40 841 540 TAP TITE-SCREW M6x25
41 845 260 SNAP RING 40X1.75 1
42 924 504 ROTARY VALVE
132' Cut-off section
for engine type 582/48 and 582/40 		1
42 924 506 ROTARY VALVE 117' 1 For 582/32. cut-off section 117' for
43 853 322 RECEPTACLE
44 865 993 MASS CABLE ASSY
45 945 750 LOCK WASHER A5 2
46 240 561 PAN HEAD SCREW M5x12
47 897 280 "CAGELESS"-LABEL 1
48 866 710  CLAMP 20mm
49 899 784 GASKET ELIMINATOR
50 897 766 MOLYKOTE 44 SILICONE GREASE
51

899 788

 899 785

LOCTITE GREEN

LOCTITE VIOLET 222


994 428 ROTAX 532 GASKET SET

Rotax 532, Rotax 582 rotary valve shaft and water pump parts.
Rotax 532 Rotary valve shaft, seals, and gaskets.
