Rotax 447 Ducati ignition parts.
Rotax 447 Ducati ignition parts.
# Part #
 Description
1-2 996 846 MAGNETO Generator P12W150
1   996 821 MAGNETO Flywheel P12W150
2 996 846 COIL KIT P15W150
3 966 207 STATOR PLATE
4  945 750 LOCK WASHER A5
5 940 880 ALLEN SCREW M5x30
6  965 463 HARNESS ASSY. P12W150
7 927 571 WASHER 5.3 :
8  840 515 ALLEN SCREW M5x18
9-11 965 761 PICKUP ASSY
10 964 072 INSULATION SHEATH
11 964 067 FASTON CONNECTOR 3.96
12 827 800 WASHER A 5.5 :
13 941 925 TAPTITE SCREW M5x16
14 945 759 LOCK WASHER 22
15 842 230 HEX. NUT M22x1.5
16 980 486 V-BELT PULLEY
17 852 412 STARTING PULLEY
18 845 310 LOCK WASHER V HZ 8
19 841 520 ALLEN SCREW M8x12
20-26 965 421 ELECTRONIC BOX ASSY
21 960 550 PROTECTION CAP
22 965 522 IGNITION CABLE 730mm
23 865 712 IGNITION CABLE 500mm
24 864 011 FASTON CONNECTOR 6.3xO.8
25 830 962 PROTECTION HOSE 12x16x40
26 866 705 SUPPRESSED SPARK PLUG CONNECTOR
27 244 211 WASHER6.4
28 945 751 LOCK WASHER A6
29 940 561 HEX.SCREW M6x20
30 897 050 B8ES SPARK PLUG 14mm
32 966 062 SPIRAL HOSE 70mm
33 897 330 LlTHIUM-BASE GREASE
34 899-785 USE H4310, LOCTITE 222

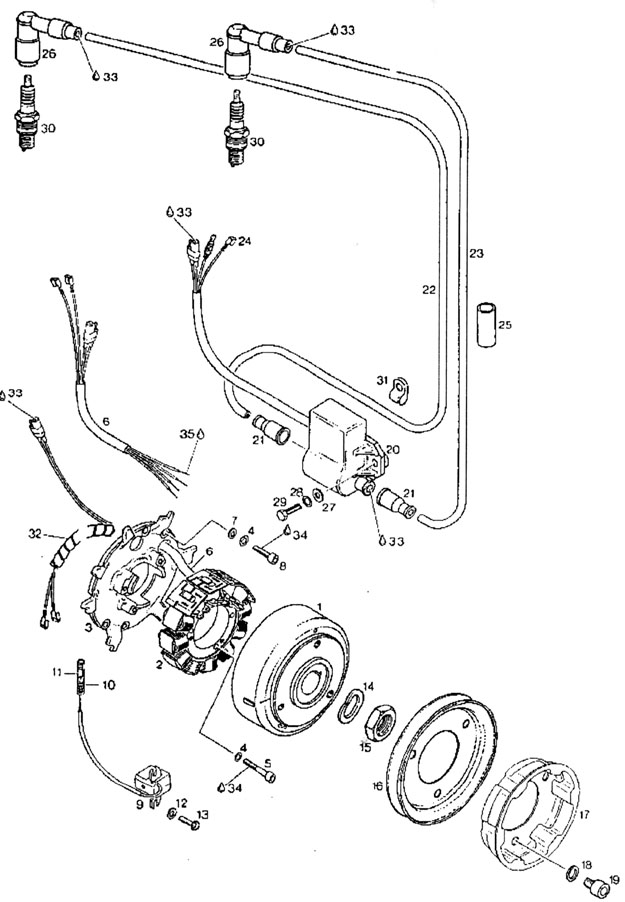

Rotax 447 Ducati Ignition system parts
