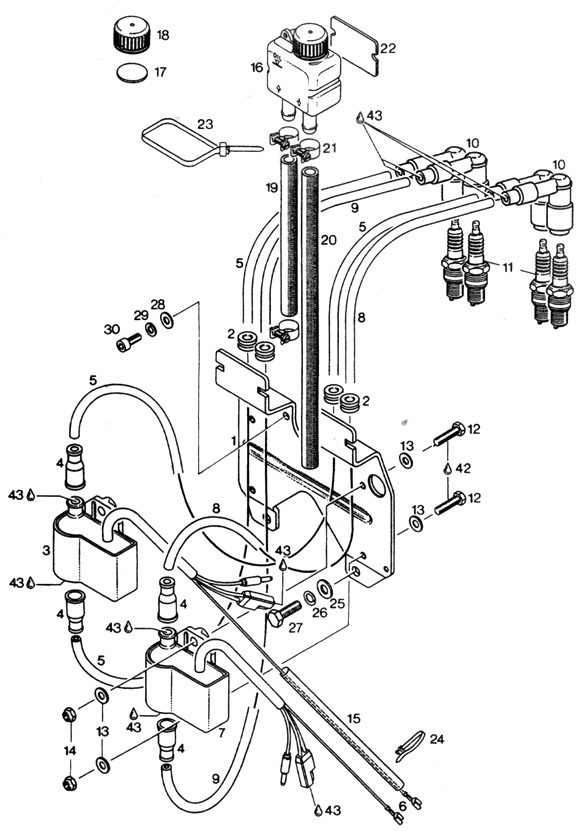

Rotax 618 ignition coils, and rotary valve tank parts.
Rotax 618 ignition coils, and rotary valve tank parts.
#
 Part #
 Description Qty Req.
1 951 615 SUPPORTING PLATE 1
1 951 617 SUPPORTING PLATE 1
2 960 445 GROMMET 4
3-6 966 462 ELECTRONIC BOX ASSY CIRCUIT pto side 618-90 1
3-6 966 462 ELECTRONIC BOX ASSY CIRCUIT pto side 618-99 1
4 960 550 PROTECTION CAP 4
5 864 695 IGNITION. CABLE 360mm CRT 2
6 840 010 FASTON CONNECTOR 2
7-9 966 467  ELECTRONIC BOX ASSY. CIRCUIT 2
mag side 618-90		 1
965 142 ELECTRONIC BOX ASSY. CIRCUIT 2
mag side 618-99		 1
8 864 075 IGNITION CABLE 440MM CIRCUIT 2 1
9 864 292 IGNITION CABLE 180MM CRT 2 1
10 866 705 PLUG CAP MAGENTA 4
11 897 055 SPARK PLUG BR8ES 14MM
27 NM COLD		 4
12 240 036 HEX SCREW M6X254 4
13 244 211 WASHER 6.4 8
14 842 040 LOCKNUT M6 4
15 960 187 PROTECTION HOSE 170MM 1
16-18 956 240 OIL TANK ASSY 1
17 850 350 RUBBER GASKET 26.5MM 1
18 956 250 OIL TANK CAP S 103/2D 1
19 956 234 OIL TUBE 155MM RETURN 1
20 956 235 OIL TUBE 360MM INFLOW 1
21 951 260 CLAMP 14  4
22 860 425 RUBBER SPACER 1
23 951 500 CLAMP 100MM 1
24 866 710 CLAMP 20MM 1
25 250 311 WASHER 2
26 945 752 LOCKWASHER A8 2
27 240 276 HEX SCREW M8X25 2
28 244 211 WASHER 6.4 2
29 945 751 LOCK WASHER A8 2
30 241 236 ALLEN SCREW M6X16 1
  886 230 ROTAX 618 GASKET SET
